NFC tag polyamide 45 x 30 mm - NTAG213 - 180 byte - black

Product number: 68909

€4.34 *

Available, delivery time: 1-4 days

Quantity

Unit price

From 1

€4.34*

From 2

€4.06*

-6.5 %

From 5

€3.06*

-29.5 %

From 10

€2.68*

-38.2 %

From 20

€2.46*

-43.3 %

From 50

€2.44*

-43.8 %

From 100

€2.37*

-45.4 %

From 250

€2.32*

-46.5 %

From 500

€2.18*

-49.8 %

From 1000

€2.02*

-53.5 %

410 available. Contact us if you are interested in a higher quantity.

Available colours

Vorderseite NFC Schlüsselanhänger in blau aus Polyamid

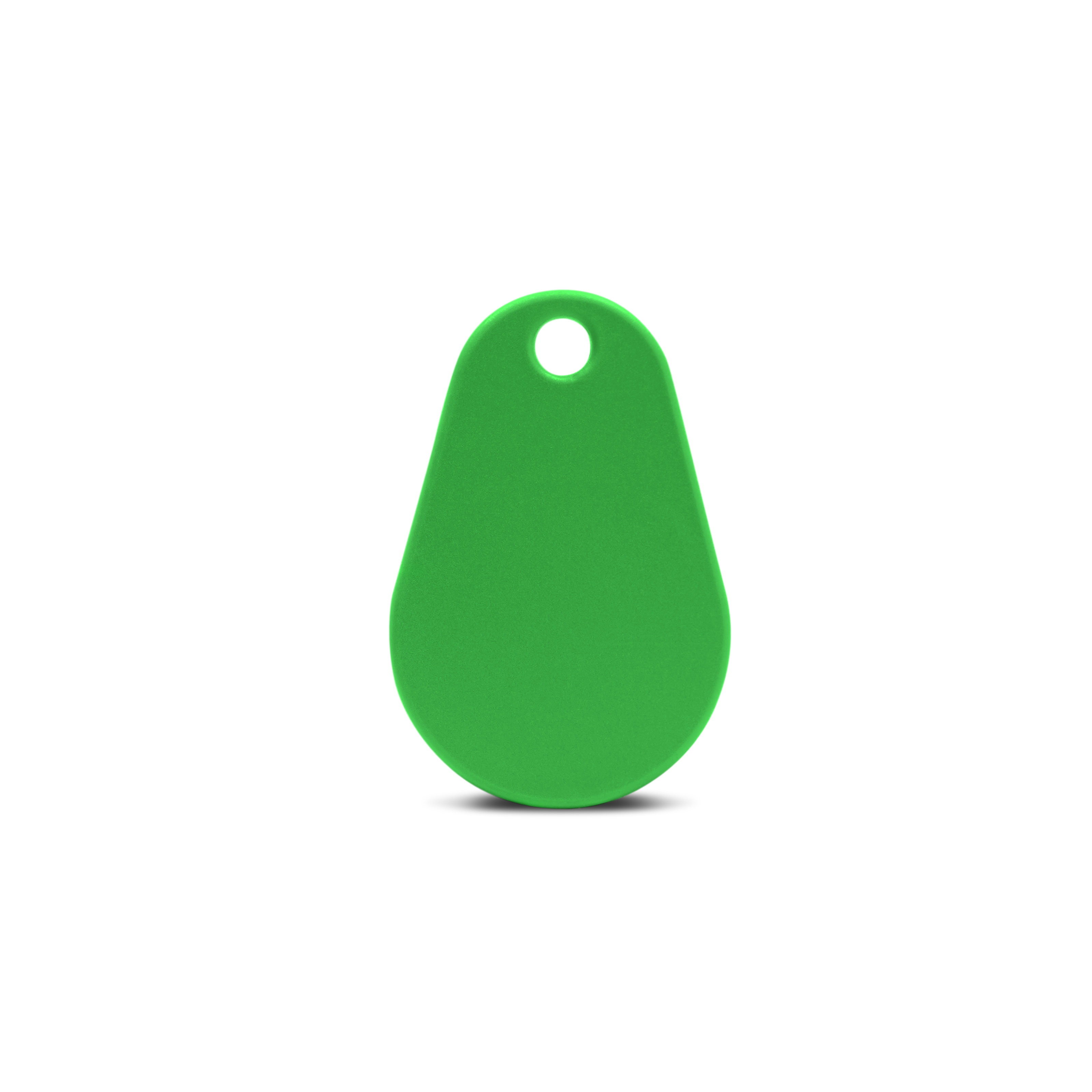

Vorderseite NFC Schlüsselanhänger in grün aus Polyamid

Vorderseite NFC Schlüsselanhänger in orange aus Polyamid

Vorderseite NFC Schlüsselanhänger in schwarz aus Polyamid

Product information "NFC tag polyamide - 45 x 30 mm - NTAG213 - 180 byte - black"

Due to its waterproof material and its distinct temperature resistance, the robust NFC tag polyamide is often used in the industrial sector, e.g. for access control in indoor and outdoor areas. Due to the appealing, clear design, it fits well into any key ring.

Short description

Polyamide material, rigid
Format 45 x 35 mm, oval
Place of use indoor and outdoor
Ambient temperature from -25 to +85 degrees
NXP NTAG 213 (NTAG213) - 180 bytes (NDEF: 137 bytes)

Product description

NFC product

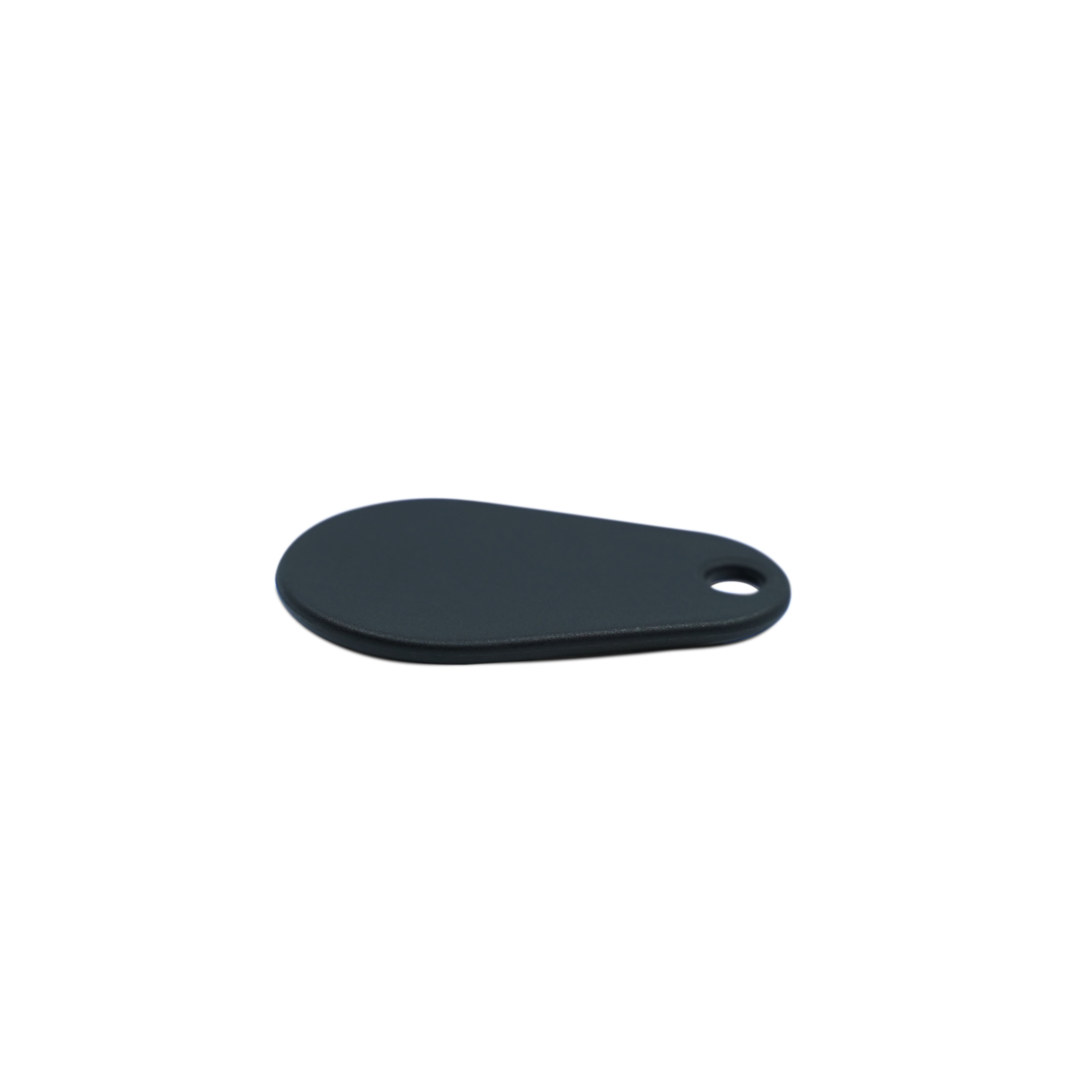

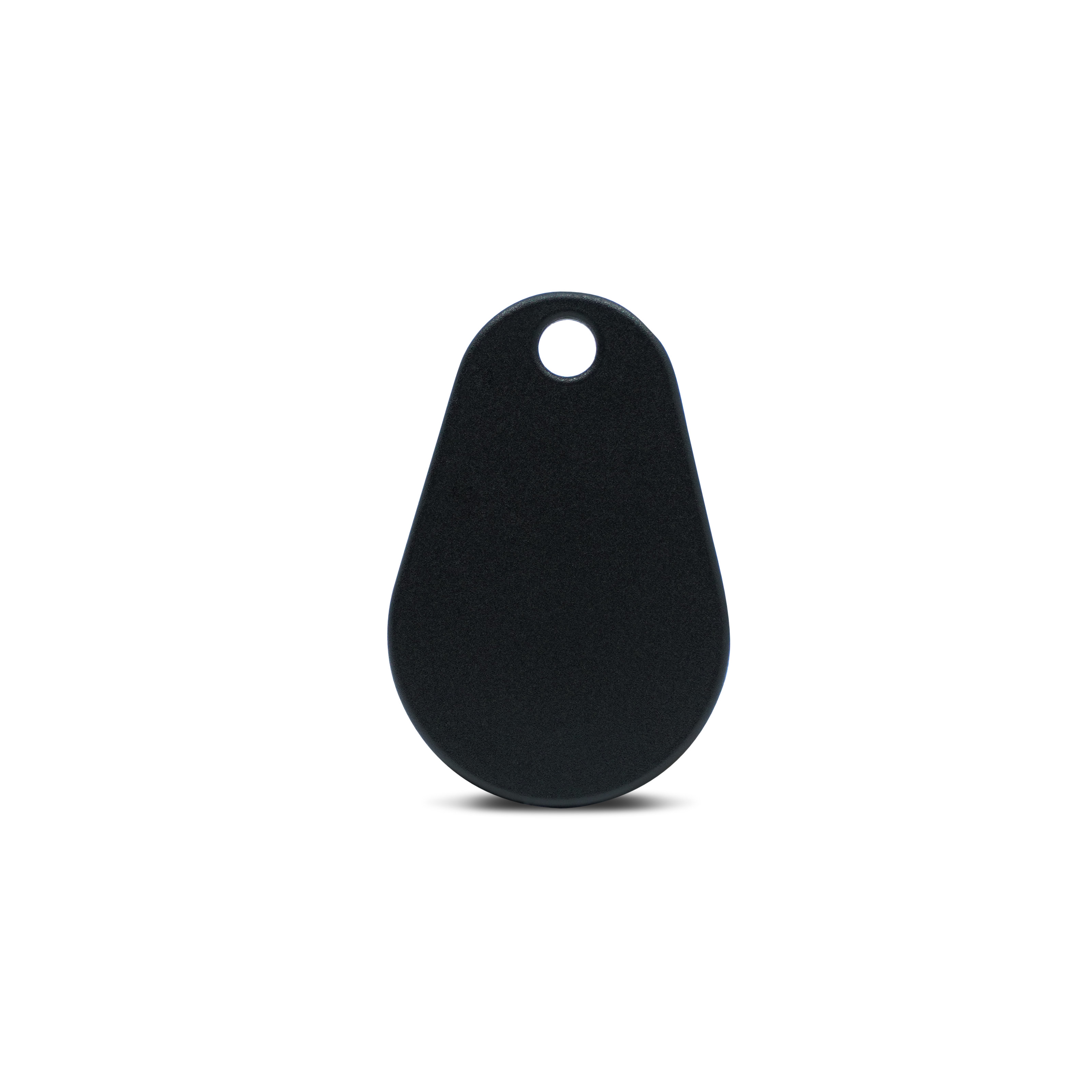

The NFC tag is made of black polyamide material and has a format of 45 x 35 mm with a material thickness of 2.3 mm. Due to the robust plastic material, the polyamide tag is waterproof and is therefore ideal for both indoor and outdoor use.

NFC chip

The NFC tag is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), of which usable memory in the NDEF is 137 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. The NTAG213 has the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools, and all ISO14443 terminals.

Total capacity: 180 bytes
Free memory: 144 byte
Usable memory NDEF: 137 byte

NFC Product
Antenna:	PCB with copper etching
Antenna format:	24 mm
Available colours:	black, blue, dark blue, green, orange
Chip standards / ISO Norm:	ISO 14 443-2 A, ISO 14 443-3 A
Detail colour:	blue
Dimensions:	45 x 30 mm (W x H)
Material:	Polyamid (PA6)

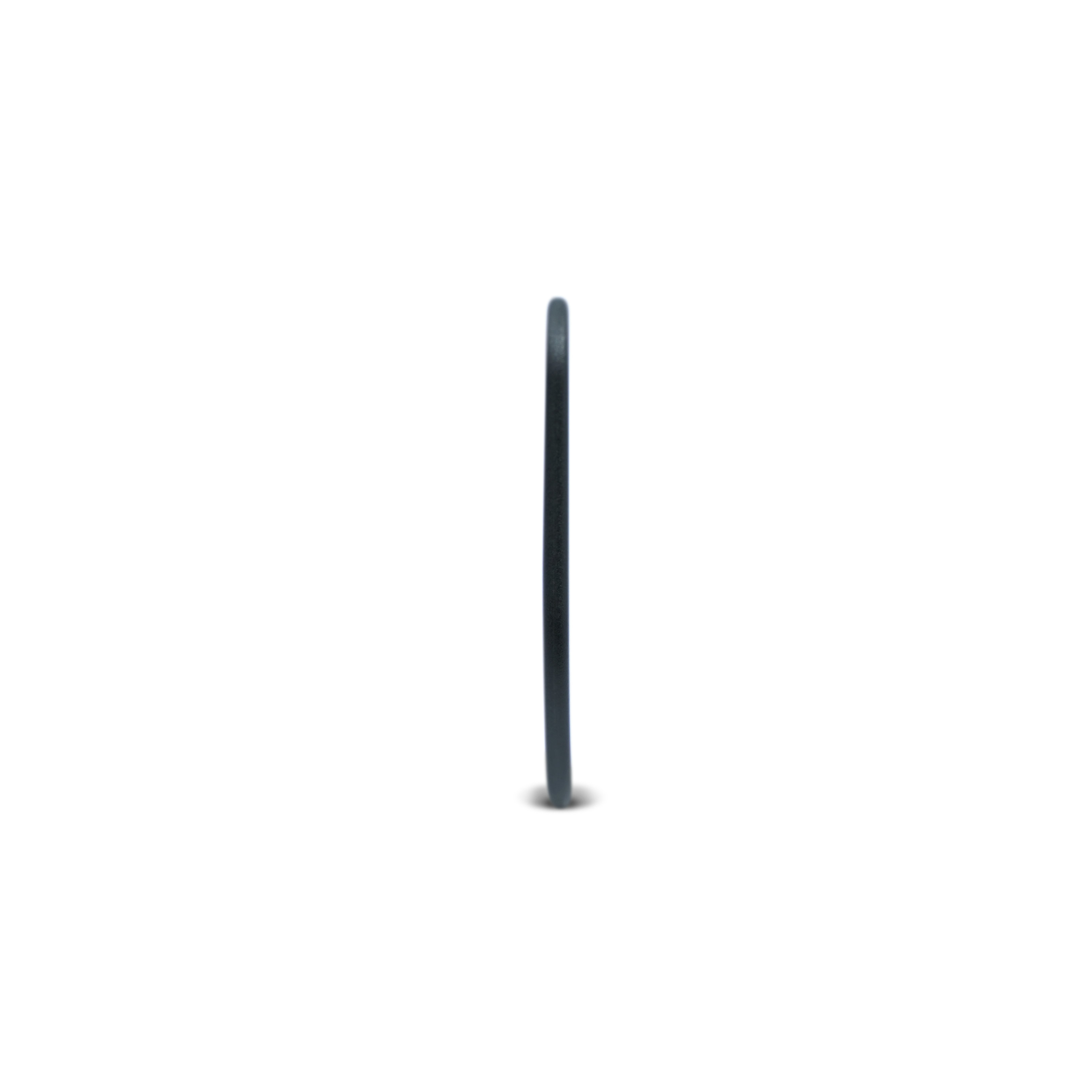

Material thickness:	2,4 mm (T)
Operating temperature:	Min -25°C - Max +70°C
Product form:	oval
Storage temperature:	Min -55°C - Max +125°C
Type:	Keyfob
Water resistance:	waterproof (IP68)
Weight:	3,3 g

There may be differences in weight, dimensions and material thickness due to the manufacturing process.

NFC Chip
Chip:	NXP NTAG213
Chip standards / ISO Norm:	ISO 14 443-2 A, ISO 14 443-3 A
Frequency:	13.56 MHz
Memory:	180 Byte (free: 144 Byte, NDEF: 137 Byte)
NFC Forum Type:	NFC Forum type 2
Functions
Compatibility:	to NFC-enabled smartphones: 100%
Data retention:	10 years
Data transfer rates:	106 kbit/s
Number of write operations:	100.000 times

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

PDF-Datasheet Datasheet - NFC tag polyamide - 45 x 30 mm - NTAG213 - 180 byte - black

NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty). The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.

Android

Android smartphones with NFC require additional apps to write to NFC tags. We have compiled typical use cases in our NFC for Android How2 collection.

iOS

NFC tags can be used in iOS with the integrated app "Shortcuts". For other use cases, we recommend an additional app, for example our free iOS app NFC21 Tools. In our NFC for iOS How2 collection, we have included several use cases for writing NFC tags with iOS devices.

Windows

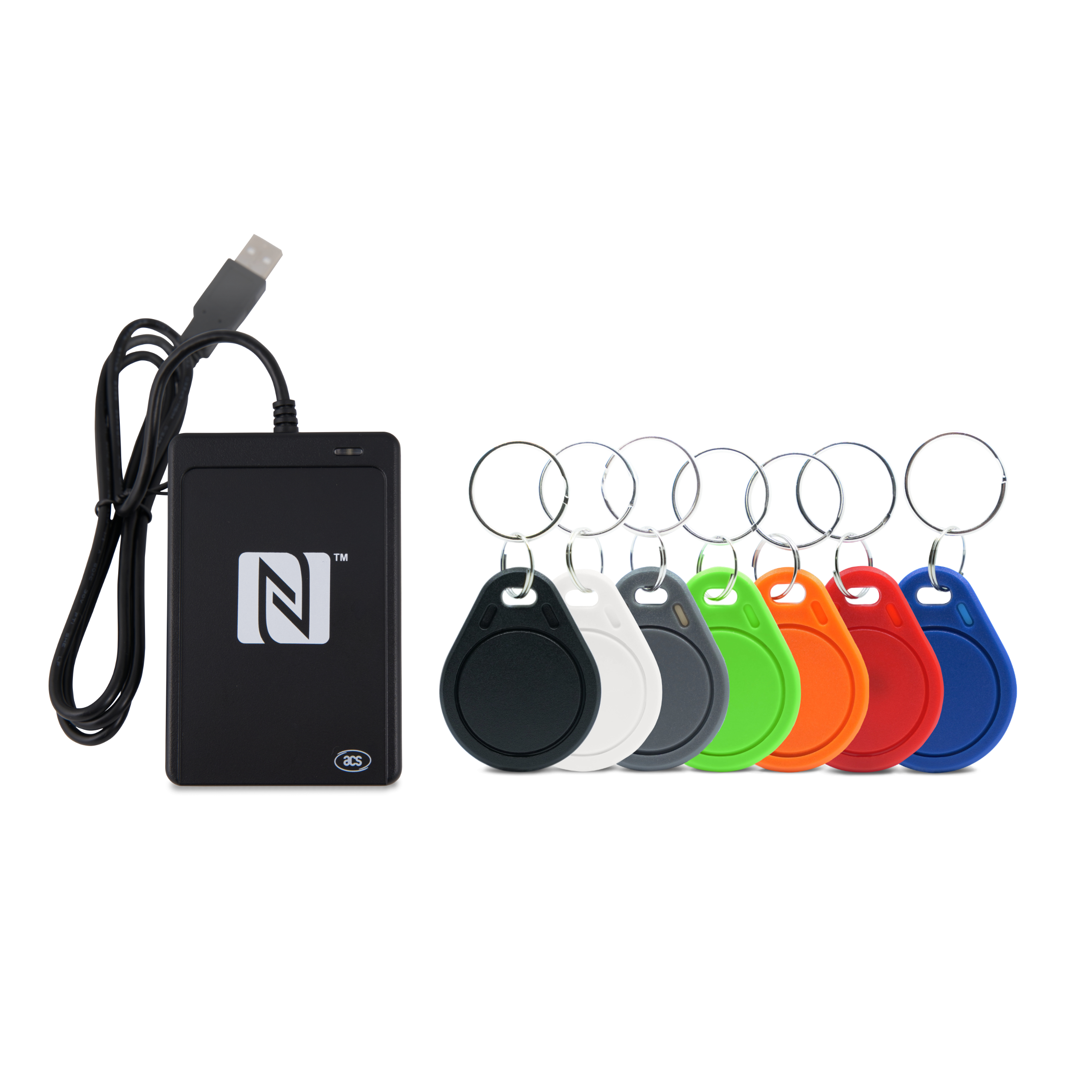

In order to be able to use NFC tags under Windows, both suitable hardware (NFC USB reader/writer) and suitable software are required. In our How2 collection we show how to use the NFC tags with the appropriate NFC hardware and software (e.g. our free software NFC21-Tools).
