NFC keyfob bamboo 30 mm - NTAG 213 - 180 byte - wood look
€4.17 *
Available, delivery time: 1-4 days
€4.17*
€3.76*
€3.25*
€2.94*
€2.45*
€2.34*
€2.02*
€1.93*
€1.90*
€1.74*
€1.62*
€1.61*
€1.49*
Our NFC Bamboo Keyfob is recommended for those who are looking for an eco-friendly and high quality NFC keychain. The integrated NTAG213 chipset is compatible with all NFC-enabled smartphones and is widely used for storing URLs or other short information.
Short Description
- Bamboo material
- Format: 30 mm, round
- Indoor use, conditionally also outdoor use
- NXP NTAG213 (NTAG213)- 180 Byte (NDEF: 137 Byte)
Product description
NFC product

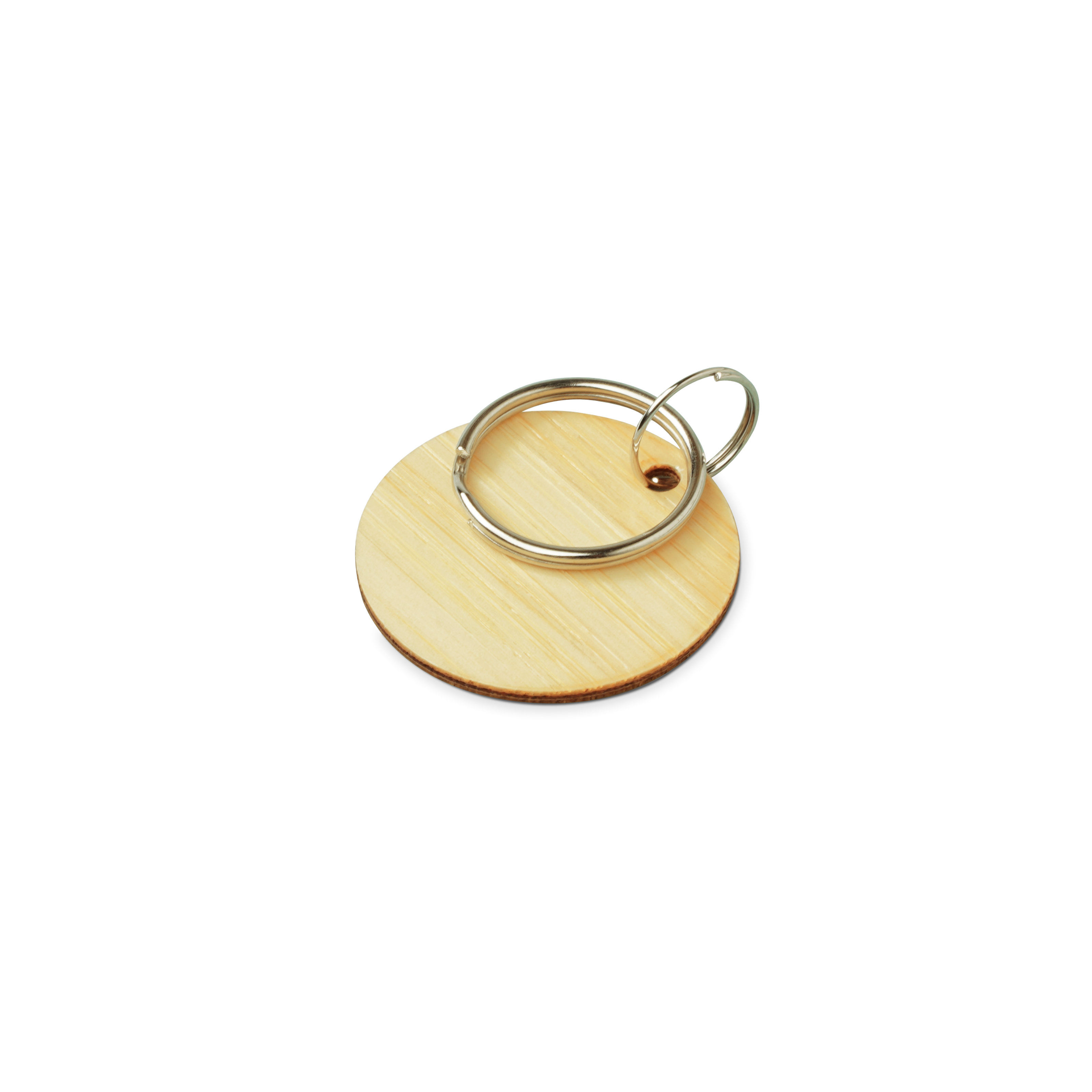

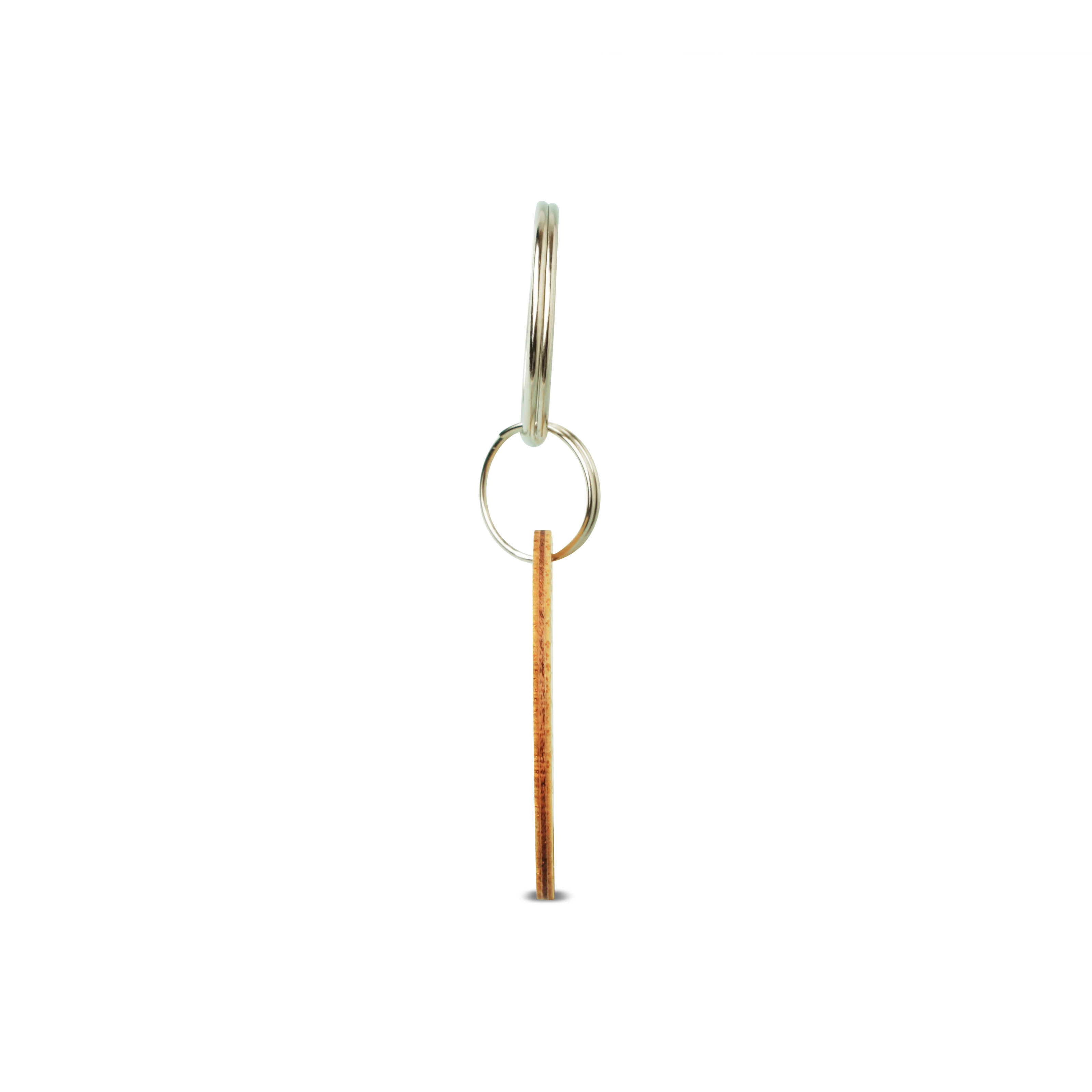

The NFC tag is made of bamboo and has a smooth, high-quality surface, which is visually very appealing due to its wood look. In addition, bamboo is a sustainable resource that grows back quickly, making it more environmentally friendly than other materials. The bamboo pendant has a diameter of 30 mm with a material thickness of 1.3 mm and is very light because of its material. For indoor use, the keychain is very suitable, for outdoor use only conditionally, because the bamboo material is only water repellent.
NFC chip
The bamboo keyfob is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), of which usable memory in the NDEF is 137 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. The NTAG213 has the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools, and all ISO14443 terminals.
- Total capacity: 180 bytes
- Usable memory: 144 bytes
- Usable memory NDEF: 137 byte
| NFC Product | |
| Antenna: | Aluminium |
|---|---|
| Antenna format: | 25 mm |
| Available colours: | light brown |
| Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
| Detail colour: | brown |
| Dimensions: | 30 mm Ø |
| Material: | Bamboo, Wood |
| Material thickness: | 1,3 mm (T) |
| Operating temperature: | Min -25°C - Max +70°C |
| Product form: | round |
| Storage temperature: | Min -55°C - Max +125°C |
| Type: | Keyfob |
| Weight: | 2 g |
| NFC Chip | |
| Chip: | NXP NTAG213 |
|---|---|
| Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
| Frequency: | 13.56 MHz |
| Memory: | 180 Byte (free: 144 Byte, NDEF: 137 Byte) |
| NFC Forum Type: | NFC Forum type 2 |
| Functions | |
| Compatibility: | to NFC-enabled smartphones: 100% |
| Data retention: | 10 years |
| Data transfer rates: | 106 kbit/s |
Login
NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty). The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.
Android
Android smartphones with NFC require additional apps to write to NFC tags. We have compiled typical use cases in our NFC for Android How2 collection.
iOS
NFC tags can be used in iOS with the integrated app "Shortcuts". For other use cases, we recommend an additional app, for example our free iOS app NFC21 Tools. In our NFC for iOS How2 collection, we have included several use cases for writing NFC tags with iOS devices.
Windows
In order to be able to use NFC tags under Windows, both suitable hardware (NFC USB reader/writer) and suitable software are required. In our How2 collection we show how to use the NFC tags with the appropriate NFC hardware and software (e.g. our free software NFC21-Tools).
