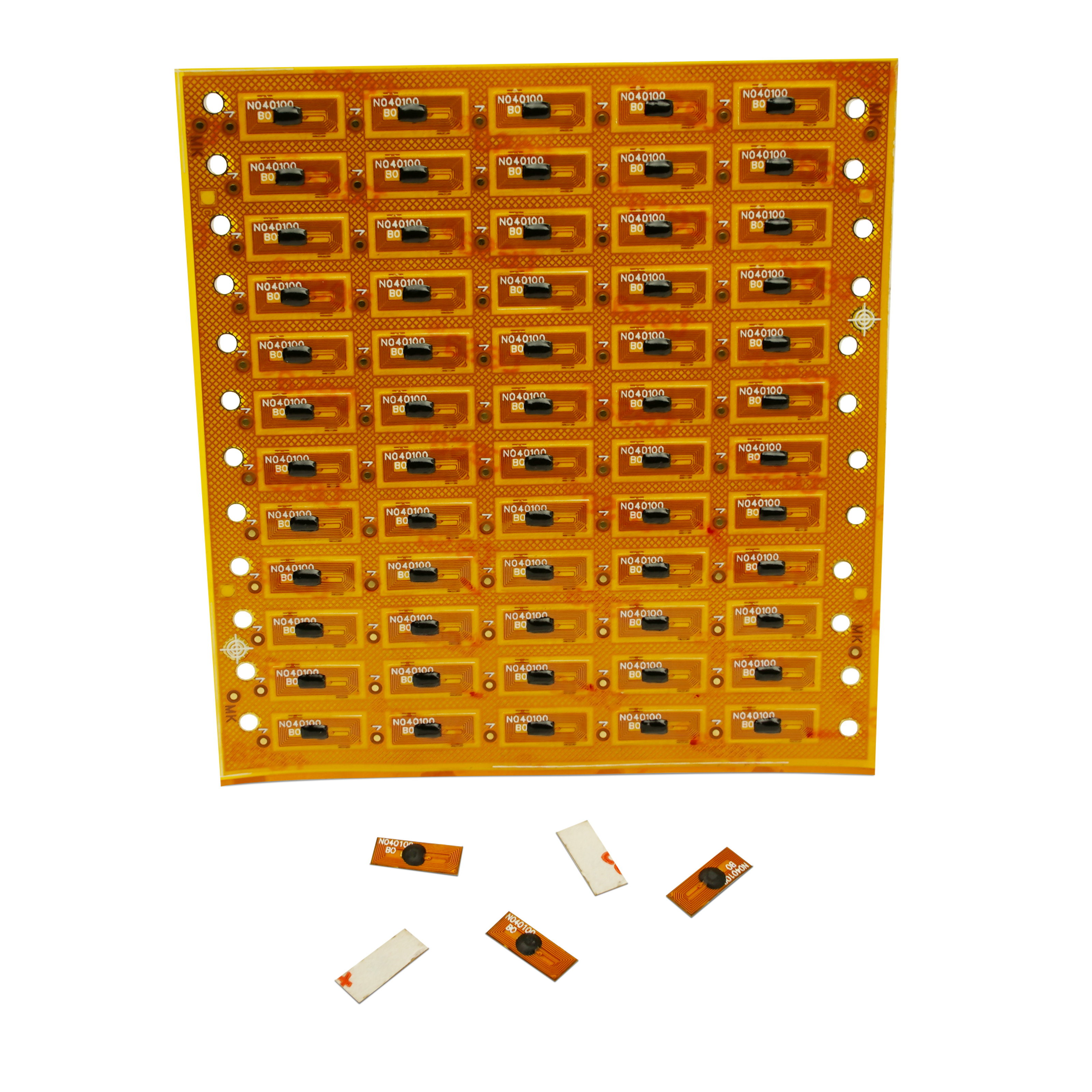

With a format of 4 x 10 mm, the NFC sticker can be accommodated in a space-saving manner and is waterproof and flexible at the same time thanks to its FPC. With the integrated NTAG213 chipset, it is particularly suitable for industrial use.
Short description
- FPC material, rigid, self-adhesive
- Suitable for metallic/conductive surfaces
- Format: 4 x 10 mm
- Indoor and outdoor application
- Ambient temperature from -25 to +70 degrees
- NXP NTAG213 (NTAG213) - 180 Byte (NDEF: 137 Byte)
Product description
NFC product
NFC chip
- Total capacity: 180 byte
- Free memory: 144 byte
- Usable memory NDEF: 137 byte
NFC Product | |
Adhesive layer: | Yes |
---|---|
Antenna: | FPC |
Antenna format: | 4 x 10 mm |
Available colours: | gold |
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Detail colour: | gold |
Dimensions: | 4 x 10 mm (W x H) |
Material: | FPC |
Material thickness: | 0,84 mm (T) |
On-metal: | on metal |
Operating temperature: | Min -25°C - Max +70°C |
Product form: | rectangular |
Storage temperature: | Min -55°C - Max +125°C |
Type: | Sticker |
Water resistance: | waterproof (IP68) |
Weight: | 0,027 g |
NFC Chip | |
Chip: | NXP NTAG213 |
---|---|
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Frequency: | 13.56 MHz |
Memory: | 180 Byte (free: 144 Byte, NDEF: 137 Byte) |
NFC Forum Type: | NFC Forum type 2 |
Functions | |
Compatibility: | to NFC-enabled smartphones: 100% |
Data retention: | 10 years |
Data transfer rates: | 106 kbit/s |
Number of write operations: | 100.000 times |
Login
NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty).The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.
