NFC Sticker bamboo printed 75 mm - NTAG213 - 180 bytes - wood look

Product number: 17179UN1

€28.79 *

Available, delivery time: 6-15 days

Quantity

Unit price

From 1

€28.79*

From 2

€21.21*

-26.3 %

From 5

€16.27*

-43.5 %

From 10

€12.94*

-55.1 %

From 20

€11.84*

-58.9 %

From 50

€10.36*

-64 %

From 100

€10.23*

-64.5 %

From 250

€8.62*

-70.1 %

From 500

€8.03*

-72.1 %

From 1000

€7.78*

-73 %

250 available. Contact us if you are interested in a higher quantity.

upload print data / configure encoding

Here you can select the desired encoding and upload your print layouts.

The costs for printing are already included in the options for one-sided or both-sided printing.
Costs are incurred for encoding in the form of a one-off set-up fee including data verification and unit costs.
All documents can also be sent after ordering to print@nfc21.de.
Please upload all print files in one PDF document. If you have several PDF documents, please send them to print@nfc21.de.
Please note that printing deviations may occur with full-surface printing.

For printing or coding larger quantities larger quantities, please use our configurator or contact us directly for a customized quote.

Option	Cost per unit	One-off set-up fee incl. data check
Encoding	0,09€	5,90€

Encoding and write protection

(+€5.90)**

If you require encoding or permanent write protection, please select it here. We will contact you if we have any queries or uncertainties.

No selection

Encoding without write protection

€0.09**

Encoding with write protection

€0.09**

Encoding: Upload

Please upload the completed coding template here. You can find the template here.

Drag & drop files here (Max. 1 file(s), max. 10 MB per file)

Print data: Upload

Please download the required print template and then upload it using the upload field.

Drag & drop files here (Max. 1 file(s), max. 10 MB per file)

Comments

You can enter further comments on your print order here. We will contact you after receiving your order and approve the production after checking.

upload print data / configure encoding

Product information "NFC Sticker bamboo printed - 75 mm - NTAG213 - 180 bytes - wood look"

Thanks to its size and robust material, the NFC sticker is suitable for a wide range of applications. From rating buttons to information signs, there are no limits to the ideas. With the NXP NTAG213 chip and 180 bytes of memory, it offers optimum functionality and sufficient memory for a URL that links to the desired destination. Made from the renewable raw material bamboo, it combines environmentally conscious design with modern technology.

Short description

Bamboo material, rigid, 3M adhesive layer
Diameter: 75 mm
Indoor use, limited outdoor use
Ambient temperature from -25 to +70 degrees
NXP NTAG213 (NTAG213) - 180 bytes (NDEF: 137 bytes)
Printed on one side
4-color printable
Print finish: satin

Product description

NFC product

The NFC sticker is made of bamboo and is characterized by its natural wood look. With a diameter of 75 mm and a material thickness of 1.5 mm, it is large enough to display information clearly, but still handy. The 3M adhesive layer ensures excellent adhesion to a variety of surfaces. The bamboo sticker is particularly suitable for indoor use, while outdoor use is rather limited due to the material's limited water resistance.

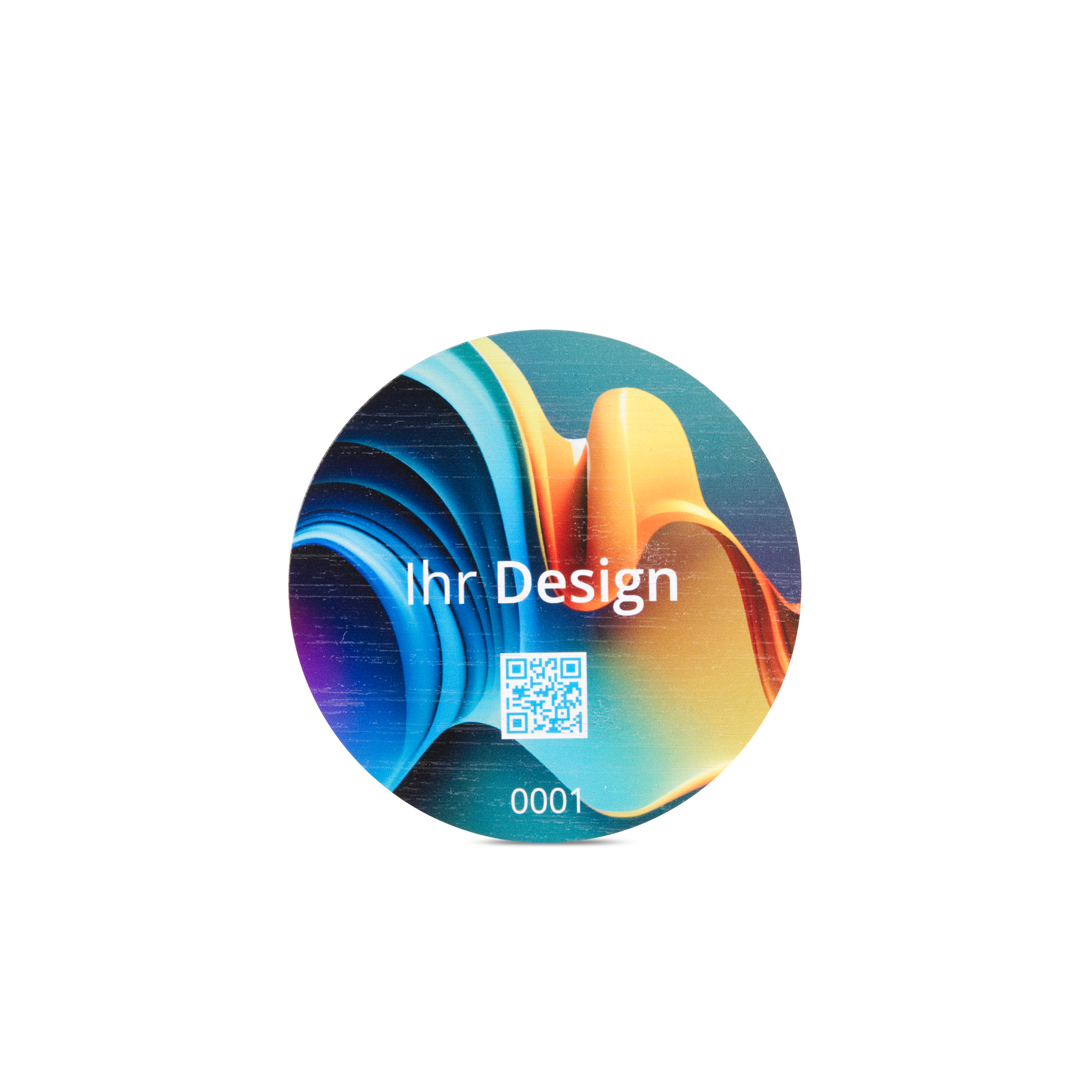

Print

Our products are printed using a process that offers high resolution, colour accuracy and durability. This makes it possible to display images in photorealistic quality or to print even tiny font sizes legibly. This environmentally friendly technology enables us to personalise your products on one or both sides and add logos, images, text or other designs from a wide range of colours. The applied colour layer is abrasion-resistant and resistant to water, sunlight and chemicals.

For your desired design, simply download our suitable print template and provide us with your desired print layout conveniently via our configurator.

NFC chip

The NFC sticker is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), of which 137 bytes are usable memory in the NDEF. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written to up to 100,000 times and has a data retention period of 10 years. The NTAG213 has the UID ASCII mirror feature, with which the UID of the tag can be appended to the NDEF message, as well as an integrated NFC counter, which increases automatically when reading. Both functions are not activated by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 end devices.

Total capacity: 180 bytes
Free memory: 144 bytes
Usable memory NDEF: 137 bytes

Do you need higher quantities?

NFC Product
Adhesive layer:	Yes (3M)
Antenna:	Aluminium
Chip standards / ISO Norm:	ISO 14 443-2 A, ISO 14 443-3 A
Detail colour:	brown
Dimensions:	75 mm Ø
Material:	Bamboo
Material thickness:	1,5 mm (T)
Operating temperature:	Min -25°C - Max +70°C
Product form:	round
Storage temperature:	Min -55°C - Max +125°C
Type:	Sticker
Weight:	5 g

There may be differences in weight, dimensions and material thickness due to the manufacturing process.

NFC Chip
Chip:	NXP NTAG213
Chip standards / ISO Norm:	ISO 14 443-2 A, ISO 14 443-3 A
Frequency:	13.56 MHz
Memory:	180 Byte (free: 144 Byte, NDEF: 137 Byte)
NFC Forum Type:	NFC Forum type 2
Functions
Compatibility:	to NFC-enabled smartphones: 100%
Data retention:	10 years
Data transfer rates:	106 kbit/s
Number of write operations:	100.000 times

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

PDF-Datasheet

NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty). The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.

Android

Android smartphones with NFC require additional apps to write to NFC tags. We have compiled typical use cases in our NFC for Android How2 collection.

iOS

NFC tags can be used in iOS with the integrated app "Shortcuts". For other use cases, we recommend an additional app, for example our free iOS app NFC21 Tools. In our NFC for iOS How2 collection, we have included several use cases for writing NFC tags with iOS devices.

Windows

In order to be able to use NFC tags under Windows, both suitable hardware (NFC USB reader/writer) and suitable software are required. In our How2 collection we show how to use the NFC tags with the appropriate NFC hardware and software (e.g. our free software NFC21-Tools).
