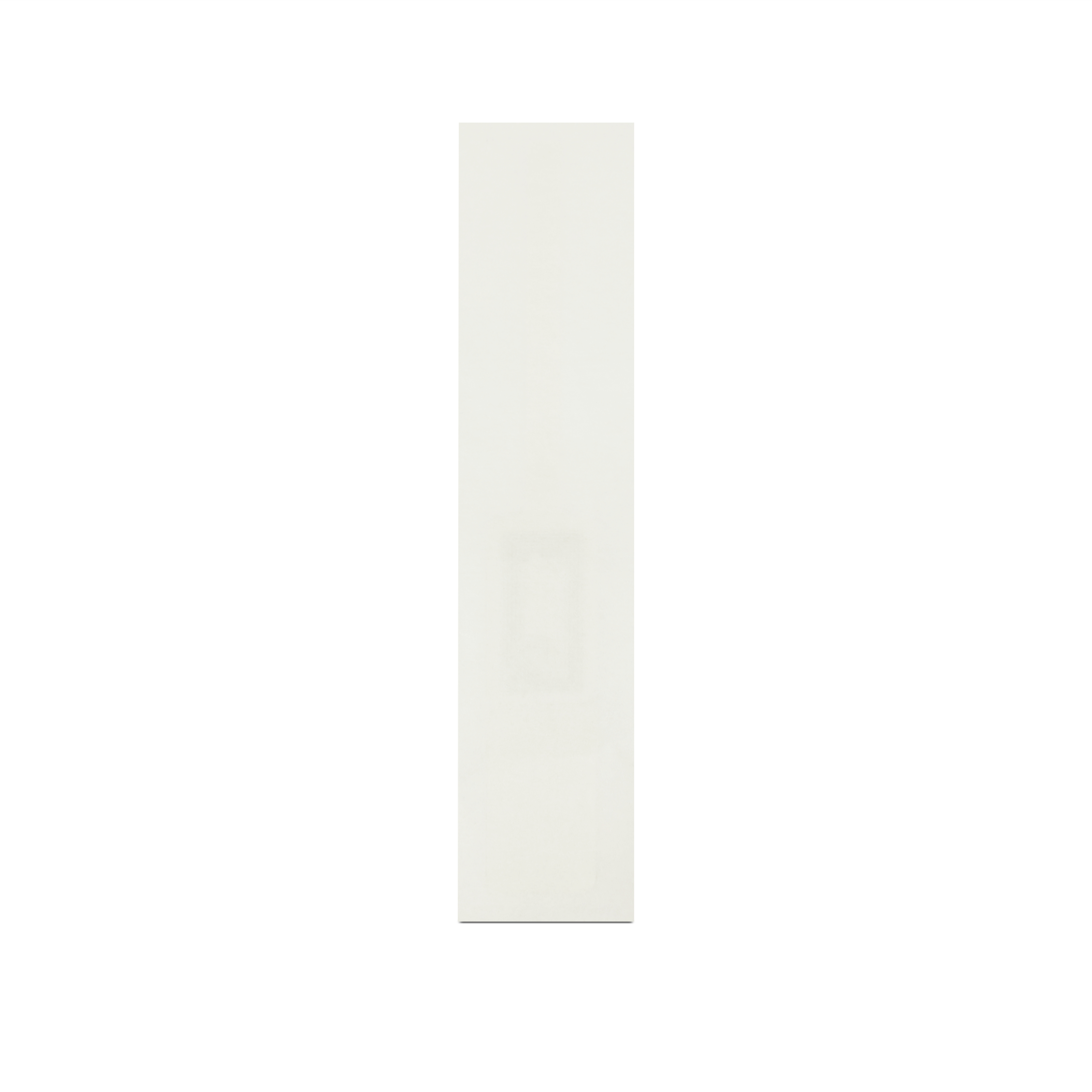

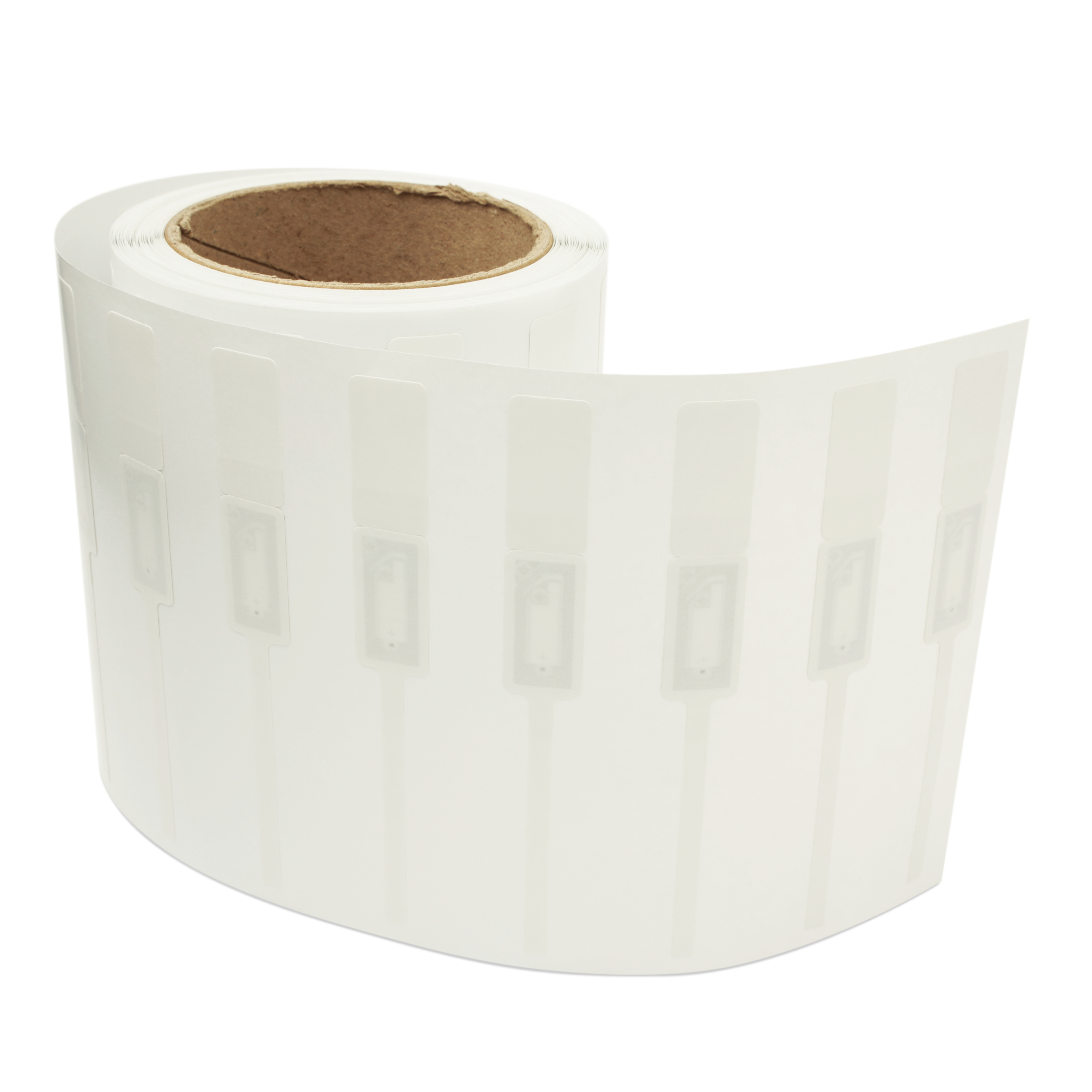

The white NFC jewellery sticker made of paper with the integrated NTAG213 chip can be easily attached to jewellery such as rings or necklaces and is therefore particularly suitable for certifying the authenticity of jewellery.
Short description
- paper, flexible, with adhesive surface
- not suitable for metallic/conductive surfaces
- Format: loop 60 x 4 mm, sticker area 60 x 15 mm
- Place of use Indoor
- Ambient temperature from -25 to +70 degrees
- NXP NTAG213 (NTAG213) - 180 Byte (NDEF: 137 Byte)
Product description
NFC product
NFC chip
- Total capacity: 180 bytes
- Free memory: 144 bytes
- Usable memory NDEF: 137 byte
NFC Product | |
Adhesive layer: | Yes |
---|---|
Antenna: | Aluminium |
Available colours: | white |
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Detail colour: | white |
Dimensions: | 60 x 30 mm (W x H) + 60 x 4 mm (W x H) |
Material: | Paper |
Material thickness: | 0,2 mm (T) |
Operating temperature: | Min -25°C - Max +70°C |
Product form: | rectangular |
Storage temperature: | Min -55°C - Max +125°C |
Type: | Sticker |
Weight: | 1 g |
NFC Chip | |
Chip: | NXP NTAG213 |
---|---|
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Frequency: | 13.56 MHz |
Memory: | 180 Byte (free: 144 Byte, NDEF: 137 Byte) |
NFC Forum Type: | NFC Forum type 2 |
Functions | |
Compatibility: | to NFC-enabled smartphones: 100% |
Data retention: | 10 years |
Data transfer rates: | 106 kbit/s |
Number of write operations: | 100.000 times |
Login
NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty).The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.
