NFC Sticker PET On-Metal - 20 x 20 mm - NTAG216 - 924 bytes - white
€3.86
€3.86
€2.96
€1.89
€1.68
€1.62
€1.50
€1.42
€1.36
€1.26
€1.13
€1.12
€1.09
€1.07
With its dimensions of 20 x 20 mm and the integrated NTAG216 chip, our NFC Sticker PET On-Metal offers a wide range of applications. Thanks to its on-metal property, it is particularly suitable for metallic surfaces. Ideal for stocktaking, for marketing campaigns and wherever an application on metal is desired.
Short description
- PET material, flexible, 3M adhesive layer
- Suitable for metallic/conductive surfaces
- Format: 20 x 20 mm
- Indoor use, limited outdoor use
- Ambient temperature from -25 to +70 degrees
- NXP NTAG216 (NTAG216) - 924 bytes (NDEF: 868 bytes)
Product description
NFC product

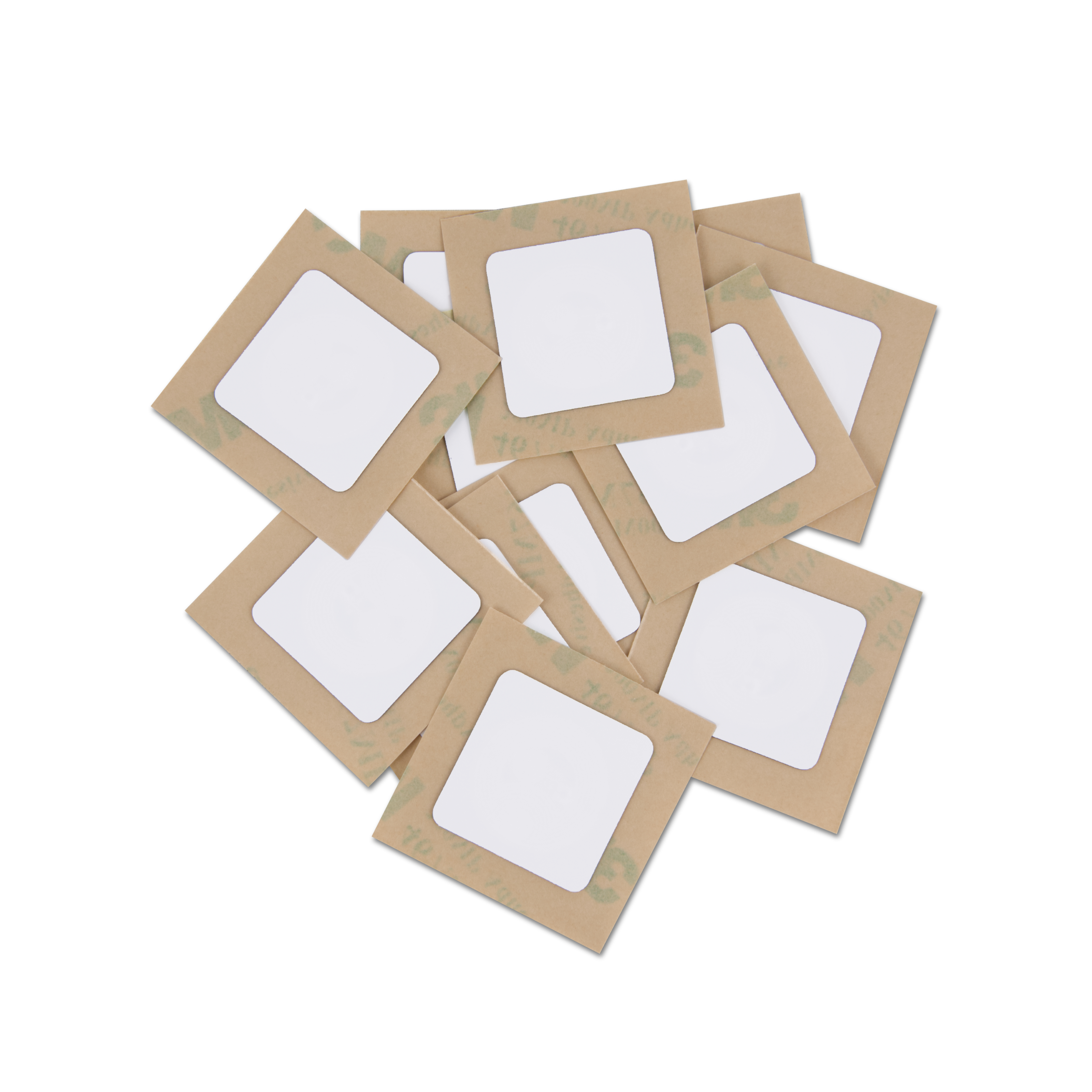

The surface material of the white NFC sticker is PET. To ensure that the sticker also works on metallic surfaces, there is an on-metal layer on the back. The material is partially waterproof, so the sticker can withstand moisture to a certain extent. The sticker has a size of 20 x 20 mm and a material thickness of 0.40 mm. The antenna is easily visible from the outside as the sticker is white. The sticker's chipset is compatible with all common NFC-enabled smartphones.
NFC chip
The NFC Sticker PET is equipped with the original NXP NTAG216, which to date offers the largest available memory space in the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG216 has a total capacity of 924 bytes (free memory 888 bytes), of which 868 bytes are usable memory in the NDEF. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written to up to 100,000 times and has a data retention period of 10 years. The NTAG216 has the UID ASCII mirror feature, with which the UID of the tag can be appended to the NDEF message, as well as an integrated NFC counter, which is automatically incremented during readout. Both functions are not activated by default. The NTAG216 is compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 end devices.
- Total capacity: 924 bytes
- Free memory: 888 bytes
- Usable memory NDEF: 868 bytes
Do you need higher quantities?
| NFC Product | |
| Adhesive layer: | Yes (3M) |
|---|---|
| Antenna: | Aluminium |
| Detail colour: | white glossy |
| Dimensions: | 20 x 20 mm (B x H) |
| Material: | PET |
| Material thickness: | 0,40 mm (T) |
| On-metal: | on metal |
| Product form: | square |
| Type: | Sticker |
| Weight: | 0,32 g |
| NFC Chip | |
| Chip: | NXP NTAG216 |
|---|---|
| Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
| Frequency: | 13.56 MHz |
| Memory: | 924 Byte (free: 888 Byte, NDEF: 868 Byte) |
| NFC Forum Type: | NFC Forum type 2 |
| Operating temperature: | Min -25°C - Max +70°C |
| Storage temperature: | Min -55°C - Max +125°C |
| Functions | |
| Compatibility: | to NFC-enabled smartphones: 100% |
| Data retention: | 10 years |
| Data transfer rates: | 106 kbit/s |
| Number of write operations: | 100.000 times |
Login
NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty). The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.
Android
Android smartphones with NFC require additional apps to write to NFC tags. We have compiled typical use cases in our NFC for Android How2 collection.
iOS
NFC tags can be used in iOS with the integrated app "Shortcuts". For other use cases, we recommend an additional app, for example our free iOS app NFC21 Tools. In our NFC for iOS How2 collection, we have included several use cases for writing NFC tags with iOS devices.
Windows
In order to be able to use NFC tags under Windows, both suitable hardware (NFC USB reader/writer) and suitable software are required. In our How2 collection we show how to use the NFC tags with the appropriate NFC hardware and software (e.g. our free software NFC21-Tools).
