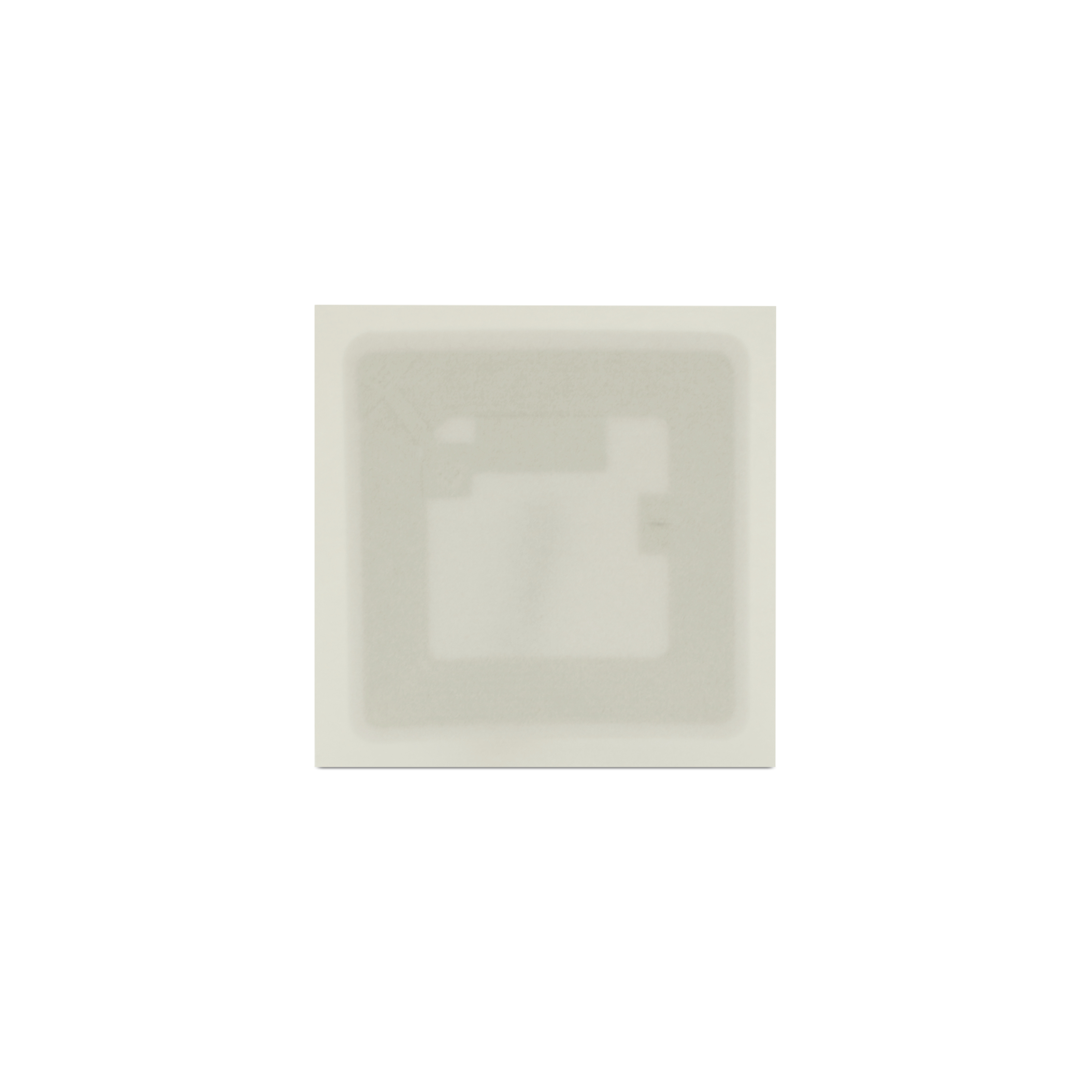

The robust NFC sticker made of PET material is equipped with the MIFARE Classic 1K and due to its high memory capacity it is especially suitable for time recording and access control as well as identification.
Short description
- PET material, flexible, self-adhesive
- not suitable for metallic/conductive surfaces
- format: 35 x 35 mm
- Indoor use, conditionally also outdoor use
- Ambient temperature from -25 to +70 degrees
- NFC Chip MIFARE Classic 1k - 1024 Byte (NDEF: 716 Byte)
Product description
NFC product
NFC chip
- Total capacity: 1024 bytes
- Free memory: 864 byte
- Usable memory NDEF: 716 byte
NFC Product | |
Adhesive layer: | Yes |
---|---|
Antenna: | Aluminium |
Available colours: | white |
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Detail colour: | white |
Dimensions: | 35 x 35 mm (W x H) |
Material: | PET |
Material thickness: | 0,18 mm (T) |
Product form: | square |
Type: | Sticker |
Weight: | 2 g |
NFC Chip | |
Chip: | MIFARE Classic EV1 |
---|---|
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Frequency: | 13.56 MHz |
Memory: | 1024 Byte (free: 864 Byte, NDEF: 716 Byte) |
Functions | |
Compatibility: | not compatible with all NFC-enabled devices |
Data retention: | 10 years |
Data transfer rates: | 106 kbit/s |
Number of write operations: | 100.000 times |
Login
NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty).The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.
