NFC Laundry coin PPS On-Metal - 22 mm - NTAG213 - 180 byte - perforated
€4.46 *
Available, delivery time: 1-4 days
€4.46*
€3.57*
€2.50*
€2.28*
€2.23*
€1.87*
€1.79*
€1.73*
€1.70*
€1.63*
€1.58*
€1.49*

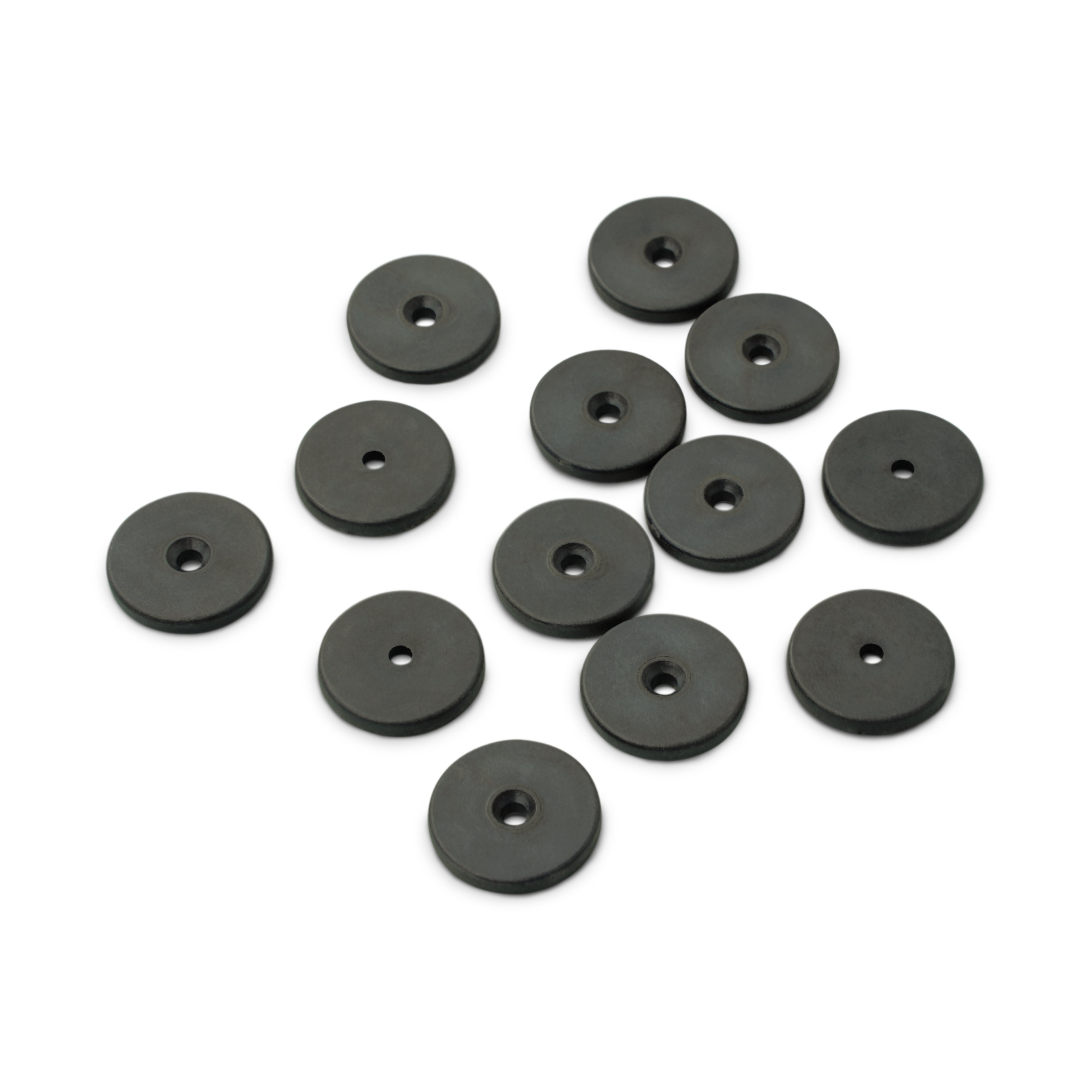

The PPS Laundry coin is fully waterproof and can withstand pressure, heat and chemicals which is why it is very suitable to facilitate the inventory of garments in hotels, hospitals and other institutions.
Short Description
- PPS material, rigid, without adhesive layer
- not suitable for metallic/conductive surfaces
- 22 mm diameter
- Indoor and outdoor application
- Ambient temperature from -25 to +70 degrees
- NXP NTAG213 (NTAG213) - 180 Byte (NDEF: 137 Byte)
Product description
NFC product
The PPS coin is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), of which usable memory in the NDEF is 137 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. The NTAG213 has the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools, and all ISO14443 terminals.
- Total capacity: 180 bytes
- Free memory: 144 byte
- Usable memory NDEF: 137 byte
| NFC Product | |
| Adhesive layer: | No |
|---|---|
| Antenna: | Aluminium |
| Available colours: | black |
| Detail colour: | black |
| Dimensions: | 22 mm Ø |
| Material: | PPS |
| Product form: | round |
| Type: | Coin |
| UID imprint: | Yes |
| Water resistance: | waterproof (IP68) |
| NFC Chip | |
| Chip: | NXP NTAG213 |
|---|---|
| Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
| Frequency: | 13.56 MHz |
| Memory: | 180 Byte (free: 144 Byte, NDEF: 137 Byte) |
| NFC Forum Type: | NFC Forum type 2 |
| Operating temperature: | Min -25°C - Max +70°C |
| Storage temperature: | Min -55°C - Max +125°C |
| Functions | |
| Compatibility: | to NFC-enabled smartphones: 100% |
| Data retention: | 10 years |
| Data transfer rates: | 106 kbit/s |
| Number of write operations: | 100.000 times |
Login
NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty). The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.
Android
Android smartphones with NFC require additional apps to write to NFC tags. We have compiled typical use cases in our NFC for Android How2 collection.
iOS
NFC tags can be used in iOS with the integrated app "Shortcuts". For other use cases, we recommend an additional app, for example our free iOS app NFC21 Tools. In our NFC for iOS How2 collection, we have included several use cases for writing NFC tags with iOS devices.
Windows
In order to be able to use NFC tags under Windows, both suitable hardware (NFC USB reader/writer) and suitable software are required. In our How2 collection we show how to use the NFC tags with the appropriate NFC hardware and software (e.g. our free software NFC21-Tools).
