NFC Sticker PET On-Metal - 22 mm - NTAG213 - 180 Bytes - Black
€7.24
Available, delivery time: 1-4 days
€7.24
€3.79
€1.94
€1.39
€1.26
€1.11
€1.00
€0.86
€0.83
€0.80
€0.78
€0.76
€0.75
€0.72
The black sticker with a diameter of 22 mm is made of flexible PET material. Thanks to its on-metal layer, it is ideal for metallic or conductive surfaces where an NFC tag is required. The integrated NTAG213 chip is particularly suitable for small content, such as web links.
Short description

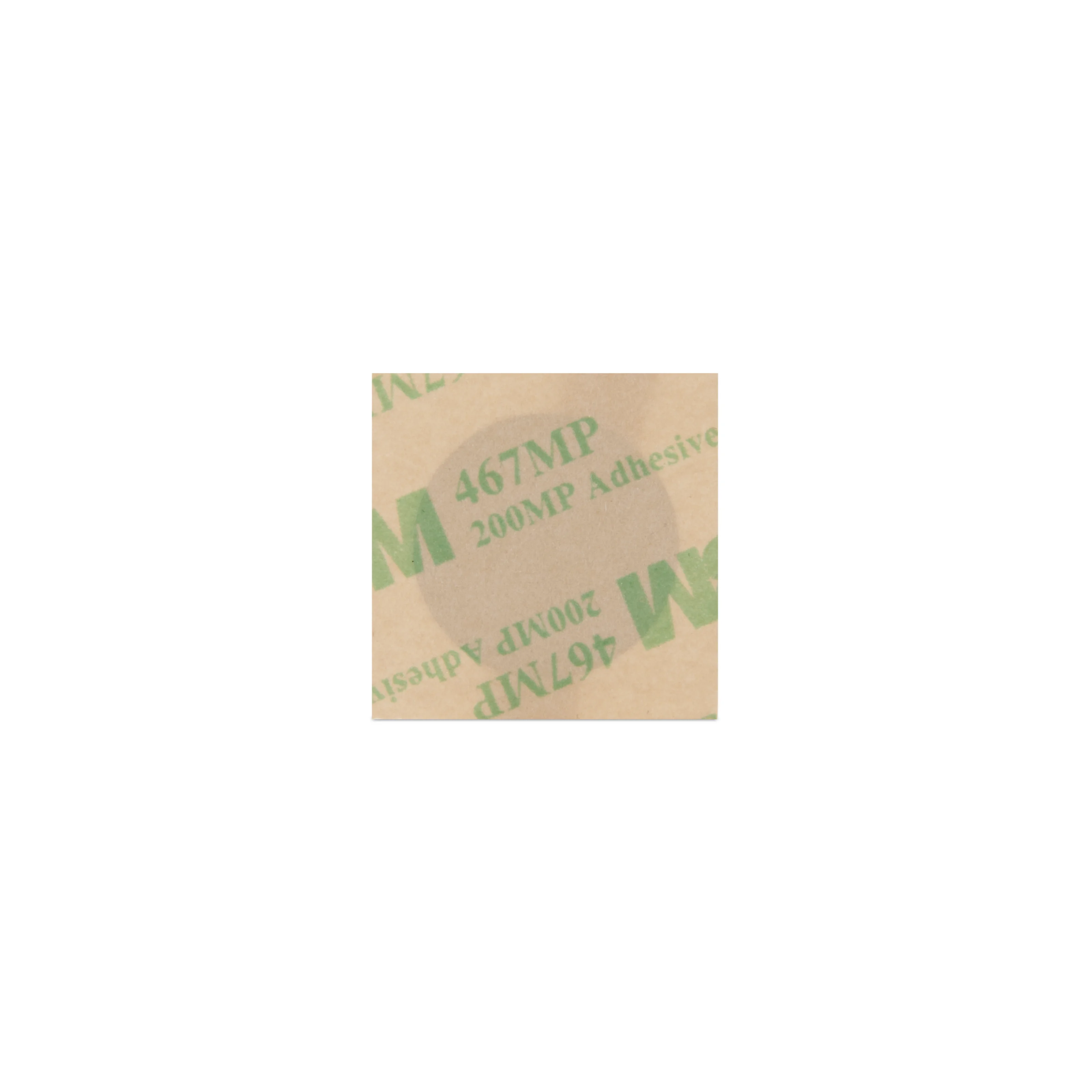

- PET material, flexible, 3M adhesive layer
- suitable for metallic/conductive surfaces
- Diameter: 22 mm
- Indoor use, limited outdoor use
- Ambient temperature from -25 to +70 degrees
- NXP NTAG213 (NTAG213) - 180 bytes (NDEF: 137 bytes)
Product description
NFC product
The black NFC sticker is made of flexible PET material with a thickness of 0.35 mm and a diameter of 22 mm. The material is water-repellent and resistant to moisture to a certain extent. The sticker is therefore primarily intended for indoor use, but can also be used outdoors to a limited extent. Thanks to its integrated on-metal layer, it is also suitable for use on conductive or metallic surfaces.
NFC chip
The NFC sticker is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), of which 137 bytes are usable memory in the NDEF. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written to up to 100,000 times and has a data retention period of 10 years. The NTAG213 has the UID ASCII mirror feature, with which the UID of the tag can be appended to the NDEF message, as well as an integrated NFC counter, which increases automatically when reading. Both functions are not activated by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 end devices.
- Total capacity: 180 bytes
- Free memory: 144 bytes
- Usable memory NDEF: 137 bytes
| NFC Product | |
| Adhesive layer: | Yes (3M) |
|---|---|
| Antenna: | Aluminium |
| Detail colour: | black glossy |
| Dimensions: | 22 mm Ø |
| Material: | PET |
| Material thickness: | 0,40 mm (T) |
| On-metal: | on metal |
| Product form: | round |
| Type: | Sticker |
| Weight: | 0,35 g |
| NFC Chip | |
| Chip: | NXP NTAG213 |
|---|---|
| Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
| Frequency: | 13.56 MHz |
| Memory: | 180 Byte (free: 144 Byte, NDEF: 137 Byte) |
| NFC Forum Type: | NFC Forum type 2 |
| Operating temperature: | Min -25°C - Max +70°C |
| Storage temperature: | Min -55°C - Max +125°C |
| Functions | |
| Compatibility: | to NFC-enabled smartphones: 100% |
| Data retention: | 10 years |
| Data transfer rates: | 106 kbit/s |
| Number of write operations: | 100.000 times |
Login
NFC tags with NTAG chipset are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty). The use of NFC tags with a chipset of the NXP NTAG series is simple, but depends on the operating system used. The following links aim to give a quick start into that topic.
Android
Android smartphones with NFC require additional apps to write to NFC tags. We have compiled typical use cases in our NFC for Android How2 collection.
iOS
NFC tags can be used in iOS with the integrated app "Shortcuts". For other use cases, we recommend an additional app, for example our free iOS app NFC21 Tools. In our NFC for iOS How2 collection, we have included several use cases for writing NFC tags with iOS devices.
Windows
In order to be able to use NFC tags under Windows, both suitable hardware (NFC USB reader/writer) and suitable software are required. In our How2 collection we show how to use the NFC tags with the appropriate NFC hardware and software (e.g. our free software NFC21-Tools).
