NFC Card PVC 85,6 x 54 mm - NTAG413 - 160 Byte - white

Horizontal stehende NFC Karte aus PVC in weiß

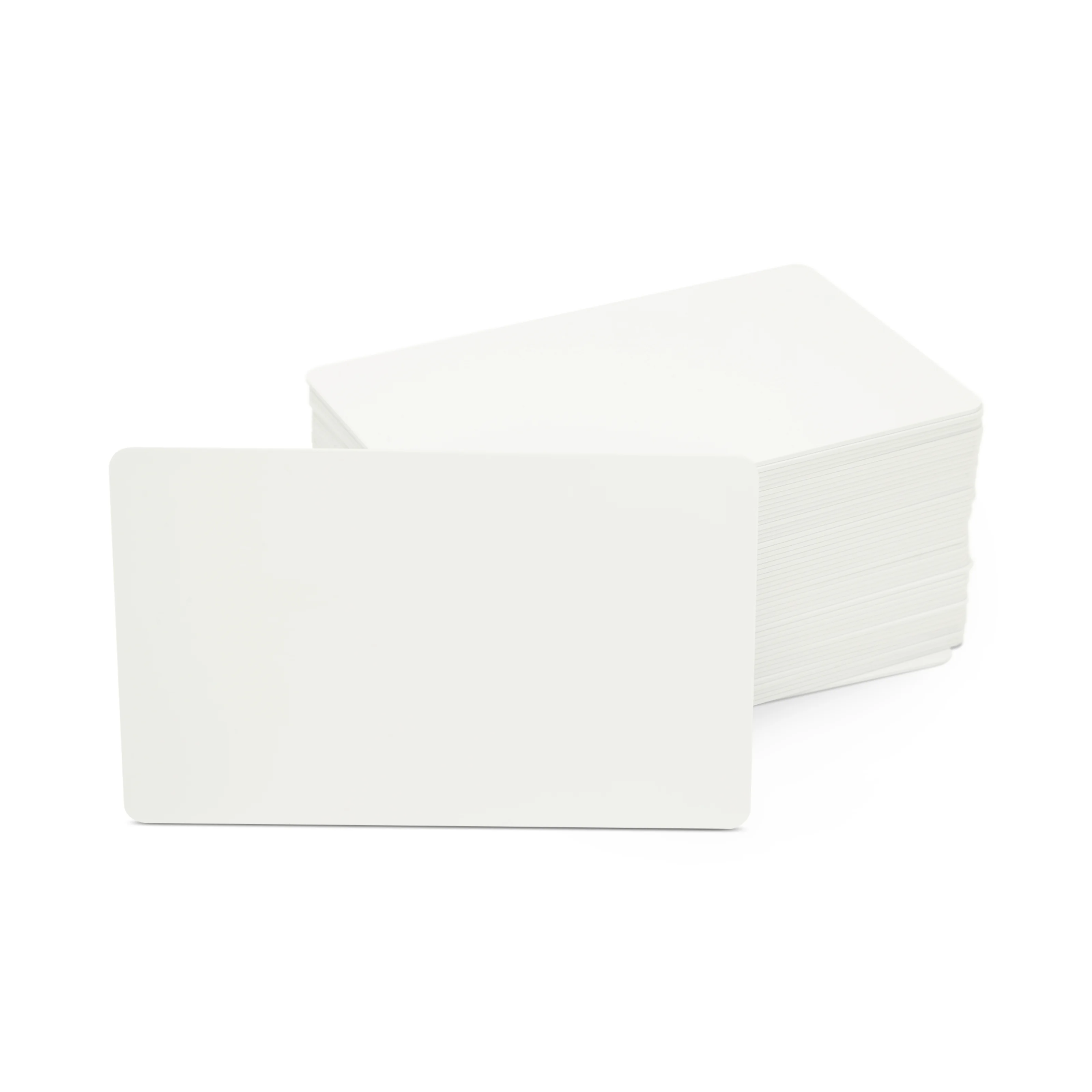

Stapel mit mehreren NFC Karten aus PVC in weiß

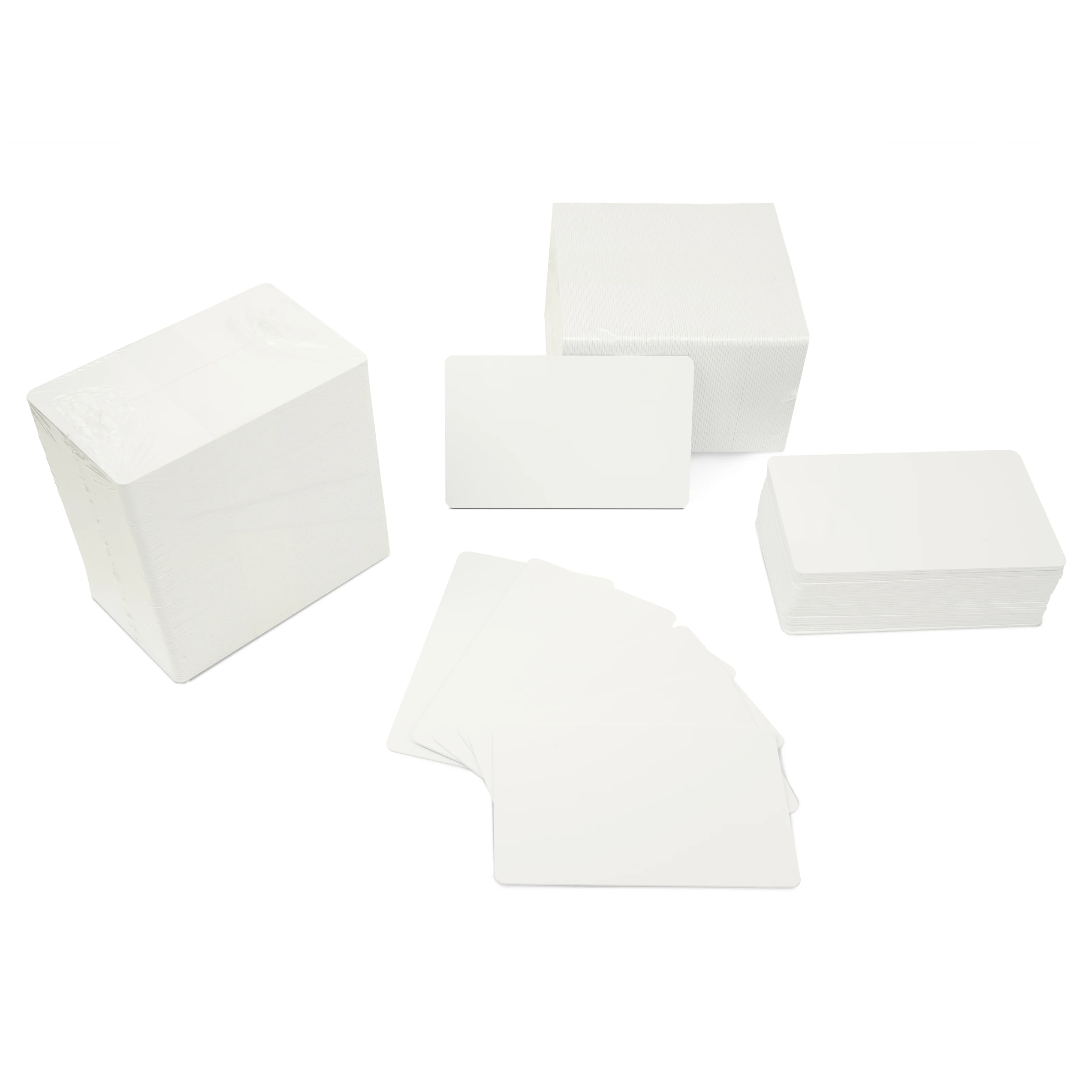

Mehrere Stapel mit NFC Karten aus PVC in weiß

Product number: 68030

€4.20

Available, delivery time: 1-4 days

Quantity

Unit price

From 1

€4.20

From 2

€3.30

-21.4 %

From 5

€3.25

-22.6 %

From 10

€2.84

-32.4 %

From 20

€2.80

-33.3 %

From 50

€2.68

-36.2 %

From 100

€2.50

-40.5 %

From 250

€2.34

-44.3 %

From 500

€2.25

-46.4 %

326 available. Contact us if you are interested in a higher quantity.

Product information "NFC Card PVC - 85,6 x 54 mm - NTAG413 - 160 Byte - white"

The PVC NFC card with the NTAG413 is recommended due to its advanced security function based on the cryptography standard AES for scenarios in which it must be ensured that the tag has actually been called up without requiring an additional app on the end device, such as in lotteries.

Short description

PVC material, flexible
Format 85,6 x 54 mm
Indoor and outdoor use
Ambient temperature from -20 to +70 degrees
NXP NTAG413 (NTAG413) - 160 Byte (NDEF: 121 Byte)

Product description

NFC product

The white NFC card is made of PVC and has a format of 85.6 x 54 mm with a material thickness of 0.86 mm. It has a smooth surface and fits easily into common wallet compartments for cards due to its typical credit card format. The PVC material of the card is flexible and waterproof at the same time and is therefore perfectly suitable for indoor as well as outdoor use.

NFC chip

The PVC card is equipped with the original NXP NTAG413, which brings additional features to enable advanced use cases. To this end, the chipset supports AES-secured content authentication as well as the Secure Unique Message Feature (SUN) for generating a unique string (HASH) based on a secret key. The generated string can be appended to a stored NDEF URL, for example, and can then be verified on the server side. The basis for this is the previously configured shared secret. The full potential of the chipset can therefore only be exploited with the appropriate infrastructure.

The NTAG413 has a total capacity of 160 bytes (free memory 128 bytes), of which usable memory in the NDEF is 121 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 200,000 times and has a data retention of 50 years. Of course, the NTAG413 also has the standard features of the NTAG series in the form of the UID ASCII Mirror Feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments when read. Both of these features, as well as the SUN feature, are not enabled by default. The NTAG413 is compatible with all NFC-enabled smartphones as well as with all ISO14443 devices.

Total capacity: 160 byte
Free memory: 128 byte
Usable memory NDEF: 121 byte

NFC Product
Adhesive layer:	No
Antenna:	Aluminium
Available colours:	white
Detail colour:	white
Dimensions:	85 x 54 mm (W x H)
Material:	PVC
Material thickness:	0,86 mm (T)
Product form:	rectangular
Type:	Card
Water resistance:	waterproof (IP67)
Weight:	6,1 g

There may be differences in weight, dimensions and material thickness due to the manufacturing process.

NFC Chip
Chip:	NXP NTAG413 DNA
Chip standards / ISO Norm:	ISO/IEC 7816-4, ISO 14443-4
Frequency:	13.56 MHz
Memory:	160 Byte (free: 128 Byte, NDEF: 121 Byte)
NFC Forum Type:	NFC Forum type 4
Operating temperature:	Min -25°C - Max +70°C
Storage temperature:	Min -55°C - Max +125°C
Functions
Compatibility:	to NFC-enabled smartphones: 100%
Data retention:	50 years
Data transfer rates:	424 kbit/s
Number of write operations:	200.000 times
