Product number:
68867
Product information "NFC Starter Kit Shortcuts - as of iPhone Xs, Xr and iOS13"
With the NFC Starter Kit Shortcuts, various automation options can be executed directly via the NFC chip from the iPhone Xs and Xr or iOS13 with the help of the in-house Apple iOS app Shortcuts. These include, for example, the automatic playback of a playlist, the automatic launch of various apps, device settings such as Wifi / Bluetooth activate, and much more.
Short description
- different materials: fabric, epoxy, PET
- Indoor, conditionally outdoor use
- ambient temperature from -25 to +70 degrees
- NXP NTAG213, NXP NTAG215, NXP NTAG216
Product description
NFC product

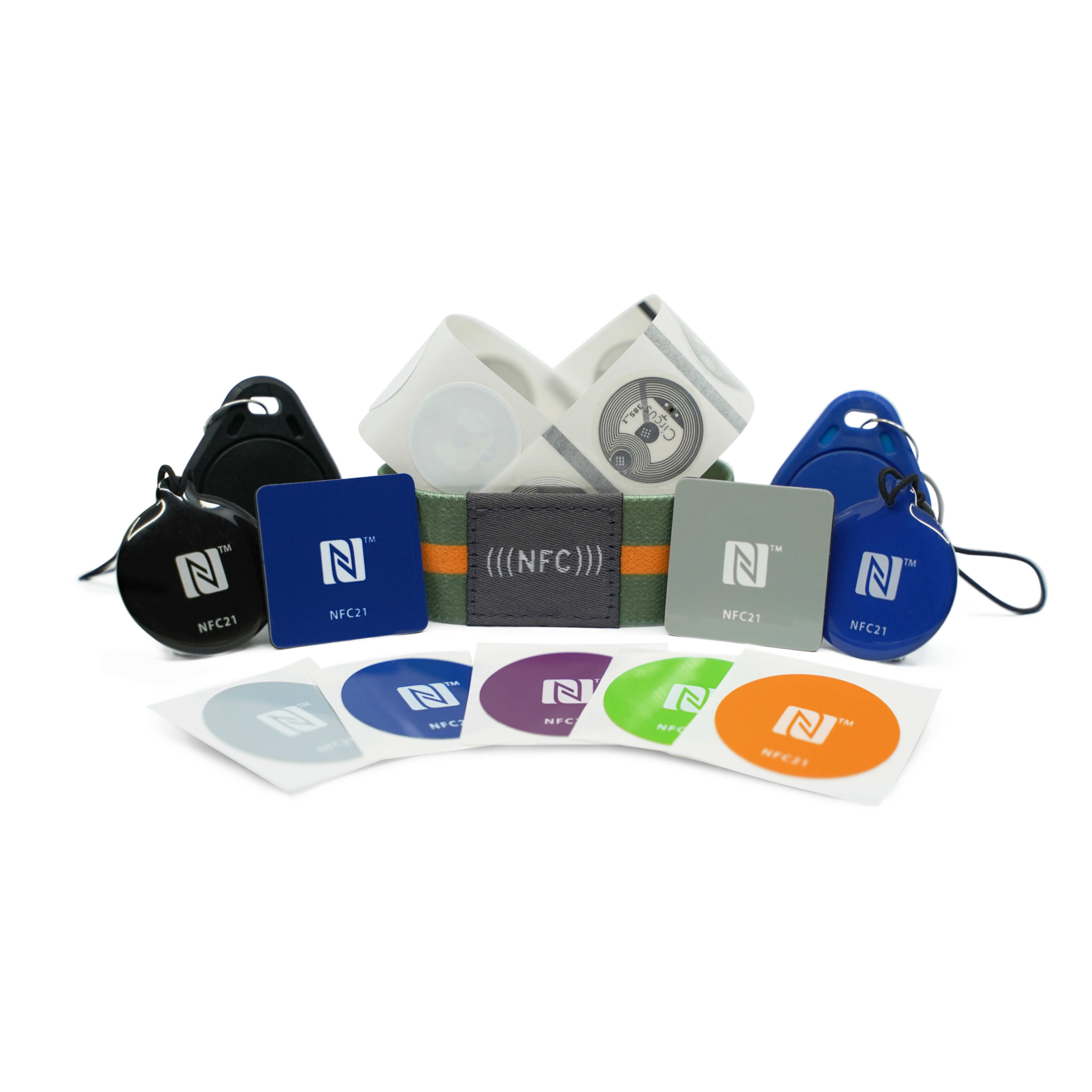

The respective NFC chip is scanned and named (compatible with iPhone Xs, Xr, 11, 11 Pro). Afterwards, different functions can be assigned to this NFC chip. The functions are stored in the iPhone and only retrieved using the unique NFC tags. This means that new functions can be configured in the iPhone without having to rewrite the respective NFC chip. The following products are included in this Starter Kit:
- 1 x NFC wristband fabric - NTAG216 - 924 byte - green - size M
- 1 x NFC tag ABS - 40 x 32 mm - NTAG216 - 924 byte - blue
- 1 x NFC tag ABS - 40 x 32 mm - NTAG216 - 924 byte - black
- 1 x NFC tag epoxy - 30 mm - NTAG213 - 180 byte - blue
- 1 x NFC tag epoxy - 30 mm - NTAG213 - 180 byte - black
- 1 x NFC Magnet - 30 x 30 mm - NTAG215 - 540 Byte - grey
- 1 x NFC magnet - 30 x 30 mm - NTAG215 - 540 byte - blue
- 5 x NFC sticker - 30 mm - NTAG213 - 180 byte - blue / green / purple / orange / grey - with logo
- 5 x NFC Sticker Circus - 22 mm - NTAG213 - 180 byte - white
- 5 x NFC Sticker Circus - 22 mm - NTAG213 - 180 Byte transparent
For older iPhone models we offer this NFC Starter Kit.
NFC chipThe
products in the Starter Kit contain different chipsets (NTAG213, NTAG215, NTAG216) and thus have different amounts of memory capacity for a wide variety of applications
.The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. All chipsets have the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The chipsets are compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 terminals.
NFC Product | |
Available colours: | black, blue, green, orange, red, white |
---|---|
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Dimensions: | 40 x 32 mm (W x H), 30 x 30 mm (W x H), 22 mm Ø, 30 mm Ø |
Material: | ABS, Fabric, PET, PVC |
Operating temperature: | Min -25°C - Max +70°C |
Storage temperature: | Min -55°C - Max +125°C |
Type: | Sticker, Magnet, Wristband, Keyfob |
Water resistance: | waterproof |
NFC Chip | |
Chip: | NXP NTAG213, NXP NTAG215, NXP NTAG216 |
---|---|
Chip standards / ISO Norm: | ISO 14 443-2 A, ISO 14 443-3 A |
Frequency: | 13.56 MHz |
Memory: | 180 Byte (free: 144 Byte, NDEF: 137 Byte), 540 Byte (free: 504 Byte, NDEF: 480 Byte), 924 Byte (free: 888 Byte, NDEF: 868 Byte) |
NFC Forum Type: | NFC Forum type 2 |
Functions | |
Compatibility: | to NFC-enabled smartphones: 100% |
Data retention: | 10 years |
Data transfer rates: | 106 kbit/s |
Number of write operations: | 100.000 times |
Login
The NFC Starter Kits offer an ideal introduction to NFC technology. Not least because all products in the Starter Kits contain only original chipsets from NXP. NFC tags with NTAG chipsets are compatible with all NFC-enabled smartphones. The NFC chips are delivered without content (empty). To use the NFC chips purposefully, additional apps are required, some of which we link to below.
Android
Android smartphones with NFC require additional apps to write to NFC tags. We have compiled typical use cases in ourNFC for Android How2 collection.
iOS
NFC tags can be used in iOS with the integrated app "Shortcuts". For other use cases, we recommend an additional app, for example our freeiOS app NFC21 Tools. In ourNFC for iOS How2 collection, we have included several use cases for writing NFC tags with iOS devices.
Windows
In order to be able to use NFC tags under Windows, both suitablehardware (NFC-USB Reader / Writer)as well as suitable software. Of course you can find the suitable NFC hardware in ourshop. In ourHow2 collectionwe show how to use the NFC tags with the appropriate NFC hardware and software (e.g. ourfree software NFC21-Tools) can be used.
