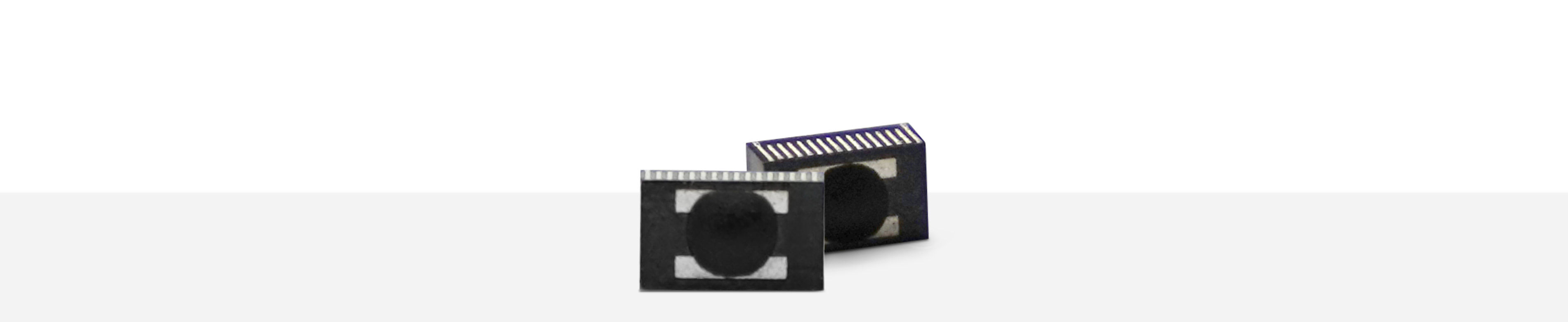

NFC Micro On-Metal
For industrial use, we offer the smallest possible NFC products that have a ferrite layer (on-metal). Due to this ferrite layer, the NFC products can also be used on conductive/metallic surfaces.
Filter
–
With an edge dimension of only 4.90 mm, this tag can be accommodated in a space-saving manner and can be used individually outdoors thanks to its FPC material and its ferrite layer. Thanks to NTAG213, the product is well suited for small in-holdings such as web links.Short descriptionFPC material, rigid, self-adhesivesuitable for metallic/conductive surfacesFormat: 4.90 x 3.00 x 2.50 mmIndoor and outdoor applicationAmbient temperature from -25 to +70 degreesNXP NTAG213 (NTAG213) - 180 Byte (NDEF: 137 Byte)Product descriptionNFC productThe on-metal sticker in the format 4.00 x 3.00 mm can be used on even the smallest conductive/metallic surfaces due to its format. The material thickness is 2.50 mm. The reading range is 1 - 5 mm. The chipset of the NFC product is compatible with all common NFC-enabled devices.NFC chipThe FPC tag is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), thereof usable memory in the NDEF 137 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. The NTAG213 has the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 terminals.Total capacity: 180 bytesFree memory: 144 bytesUsable memory NDEF: 137 byte
