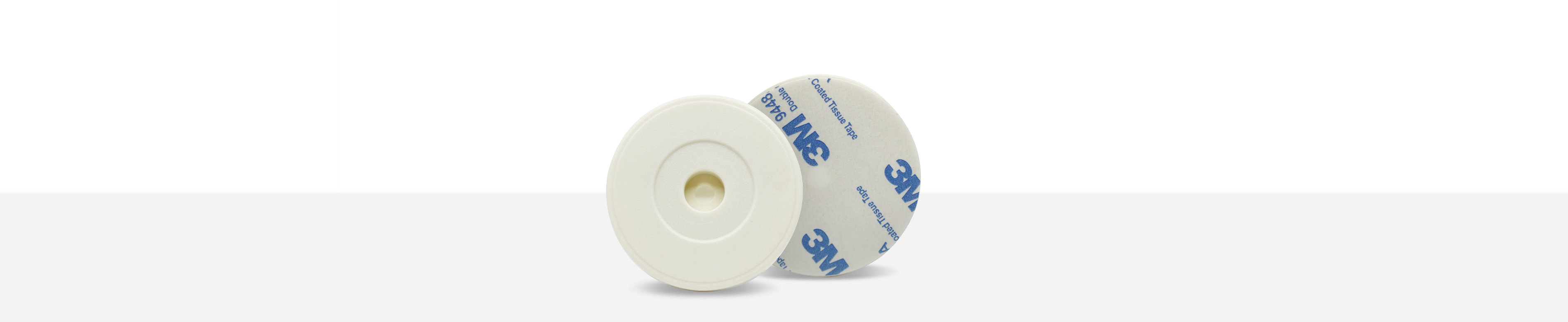

ABS Coins (IP67)
The ABS coins are particularly durable due to the material used and can be used well in the outdoor area.
On request, we also offer some articles with ID printing. Please contact us in case of need.
Filter
–
The black NFC coin is durable due to its ABS material and ideally protected against moisture and is therefore ideal for object monitoring or product scanning both indoors and outdoors.Short descriptionABS material, rigidnot suitable for metallic/conductive surfaces30 mm diameterIndoor and outdoor applicationAmbient temperature from -25 to +70 degreesNXP NTAG213 (NTAG213) - 180 Byte (NDEF: 137 Byte)Product descriptionNFC productThe black NFC Disc is made of ABS and is therefore both robust and waterproof. It has a diameter of 30 mm and a height of 2.54 mm. There is also a 3 mm hole in the middle for attachment. The NFC chip contains a high quality copper coil which ensures a long life for this product. The NFC Disc can be used in a temperature range of -25 degrees to 70 degrees. This item is compatible with all NFC enabled smartphones.NFC ChipThe ABS coin is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), thereof usable memory in the NDEF 137 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. The NTAG213 has the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 terminals.Total capacity: 180 bytesFree memory: 144 bytesUsable memory NDEF: 137 byte
The NFC Heavy ABS On-Metal Tag is often used in industry due to its water resistance. In addition to a 3M adhesive layer, the product also has a perforation of 5 mm (outer diameter approx. 10 mm). Thus, the NFC Heavy ABS Tag can be glued as well as screwed / riveted. Due to the special on-metal property, the NFC tag can be attached to any metallic / conductive surface.Short descriptionABS material, rigidFormat 30 mm, roundIndoor and outdoor useAmbient temperature from -25 to approx. 60 degreesNFC Chip NXP NTAG213 (180 Byte, NDEF: 137 Byte)Product descriptionNFC productThe round NFC tag is made of black ABS with a diameter of 30 mm and a material thickness of approx. 5.4 mm. Due to the robust plastic material the NFC ABS Tag is waterproof and perfectly suitable for indoor as well as outdoor use.NFC chipThe NFC Heavy ABS On-Metal Tag is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), thereof usable memory in the NDEF 137 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. The NTAG213 has the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 terminals.
Total capacity: 180 byte
Free memory: 144 byte
Usable memory NDEF: 137 bytes
The NFC Heavy ABS On-Metal Tag is often used in industry due to its water resistance. In addition to a 3M adhesive layer, the product also has a perforation of 5 mm (outer diameter approx. 10 mm). Thus, the NFC Heavy ABS Tag can be glued as well as screwed / riveted. Due to the special on-metal property, the NFC tag can be attached to any metallic / conductive surface.Short descriptionABS material, rigidFormat 52 mm, roundIndoor and outdoor useAmbient temperature from -25 to approx. 60 degreesNFC Chip NXP NTAG213 (180 Byte, NDEF: 137 Byte)Product descriptionNFC productThe round NFC Tag is made of white ABS with a diameter of 52 mm and a material thickness of approx. 8.5 mm. Due to the robust plastic material the NFC Heavy ABS Tag is waterproof and perfectly suitable for indoor as well as outdoor use.NFC ChipThe NFC Heavy ABS On-Metal Tag is equipped with the original NXP NTAG213 and offers a cost-effective entry into the NTAG21x series. The NXP NTAG21x series impresses with the greatest possible compatibility, good performance and intelligent additional functions. The NTAG213 has a total capacity of 180 bytes (free memory 144 bytes), thereof usable memory in the NDEF 137 bytes. Each individual chip has a unique serial number (UID) consisting of 7 bytes (alphanumeric, 14 characters). The NFC chip can be written up to 100,000 times and has a data retention of 10 years. The NTAG213 has the UID ASCII Mirror feature, which allows the tag's UID to be appended to the NDEF message, as well as an integrated NFC counter that automatically increments during readout. Both features are not enabled by default. The NTAG213 is compatible with all NFC-enabled smartphones, the NFC21 tools and all ISO14443 terminals.
Total capacity: 180 byte
Free memory: 144 byte
Usable memory NDEF: 137 byte
